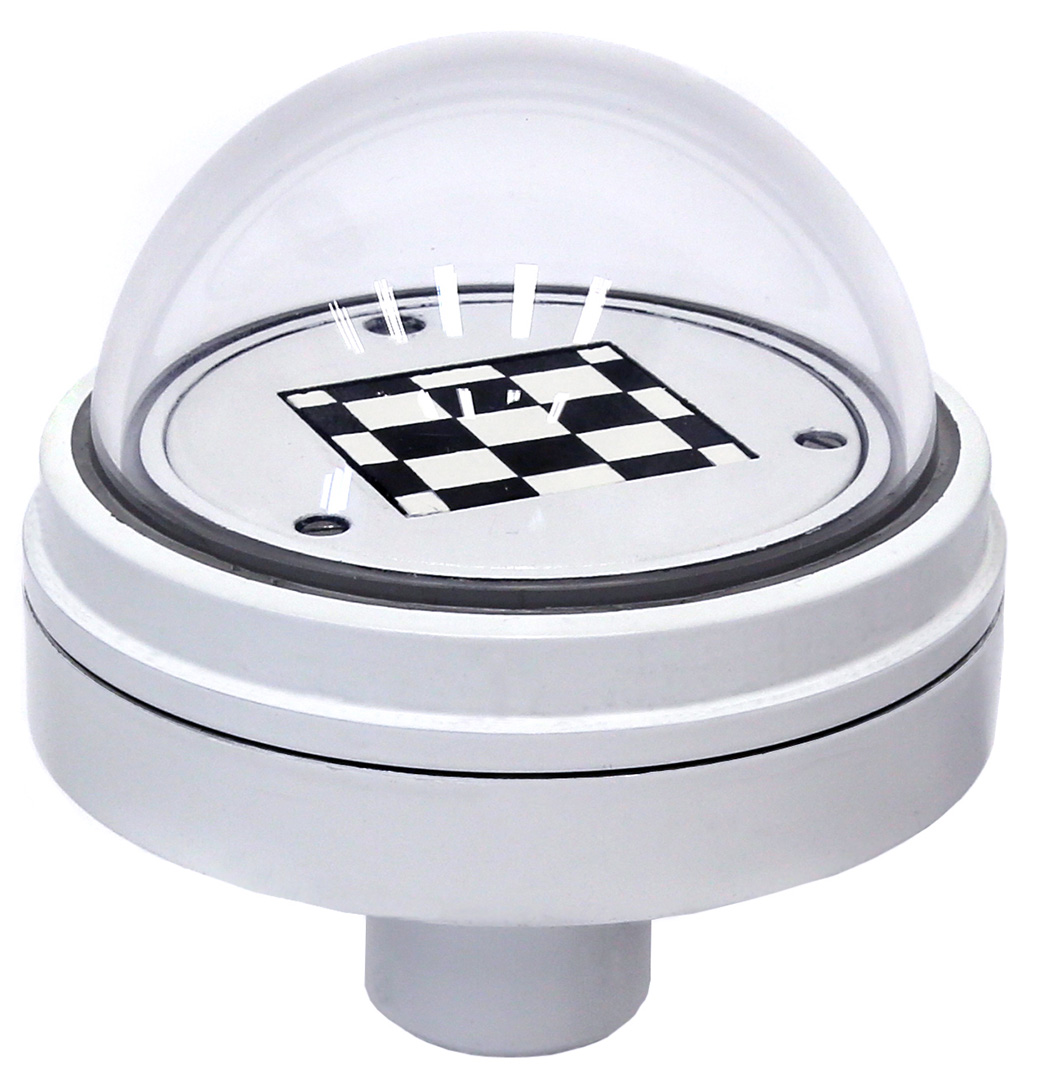

PELENG SF-06-21 Pyranometer
PELENG SF-06-21 Pyranometer
PURPOSE
  • Total solar irradiance measurement in 0.28 μm to 4 μm range
  • Operating principle of the device is based on the temperature variation determination of manganin- constantan elements of thermobattery, proportional irradiance generated by solar irradiation. Temperature variation transforms into electric signal in analog form. Digital signal in ASCII codes is used via the RS-485 interface according to the corresponding protocols. When working with a computer, the value of the irradiance is displayed in the software window "Peleng Meteo Actinometry”

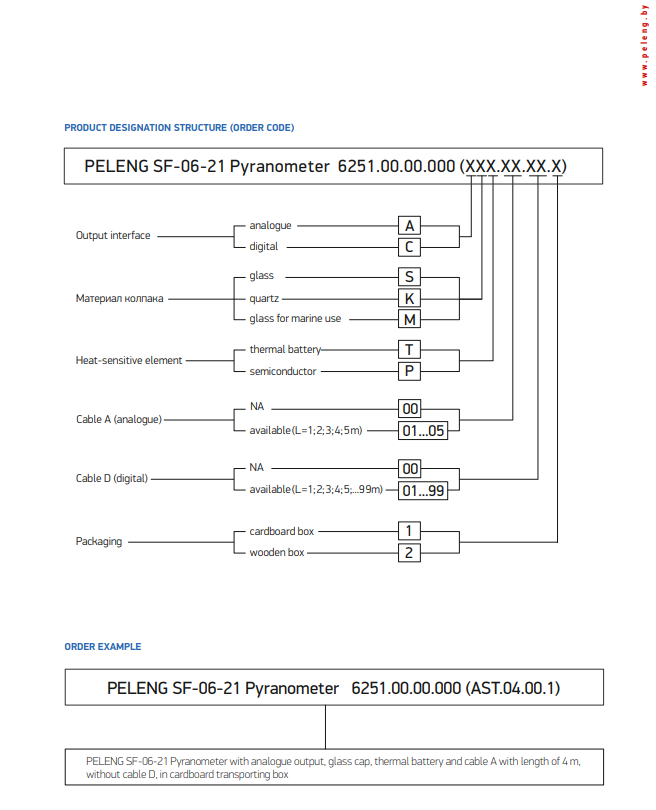

Available device versions
  • Pyranometer with analog output signal
  • Electronic pyranometer with digital and analog signals
SPECIFICATIONS
Irradiance range 0 - 2 kW/m2
Permissible main relative measurement error ± 10%
Ambient temperature induced permissible additional measurement error, per 10°C temperature change ± 1,5%
Conversion factor for normal irradiance ≥ 8 mV m2 / kW
Response time 20 s
Electronic pyranometer interface RS-485
DC supply voltage range electronic pyranometer 6 - 24 V
Protection IP 65
Life time 10 years
Spectral range:
- version with glass protector cap 0.3 - 2.8 μm
- version with quartz protection cap 0.28 - 4 μm
Operation environment:
- ambient temperature -60°С to +80°С
- relative air humidity 0 - 100%
- atmospheric pressure 600 -1100 gPa
Overall dimensions (L × W × H):
- pyranometer 105×105×95 mm
- electronic pyranometer 105×105×105 mm
Weight:
- pyranometer head 1 kg
- electronic pyranometer 1.1 kg
CERTIFICATES
№11217 State Committee for Standardization of the Republic of Belarus
№82816-21 Federal Agency on Technical Regulation and Metrology (Russian Federation)
Conforms to ISO 9060
Программное обеспечение
Peleng Meteo Actinometry
Actinometry Service
