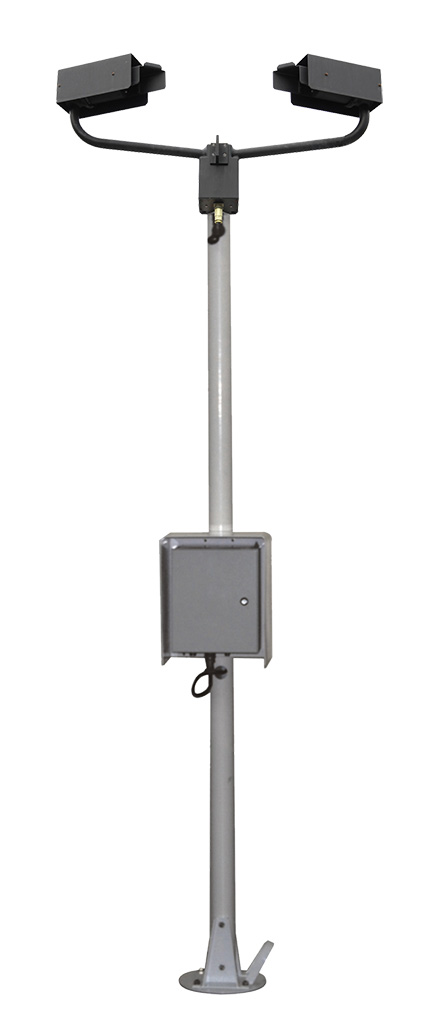

PELENG SL-03 Nephelometer
|
PURPOSE
|
|
| Meteorological optical range (MOR) measurement | |
| Determination of the current weather phenomenon (optional): |
- rain
- drizzle - rain with snow - snow - hail - fog - haze - fair - precipitation of an indeterminate type |
|
COMPLETE SET
|
|
| Software | |
| Bridge assembly: |
- emitter
- receiver - bridge - control unit |
| Optional equipment |
|
|
SPECIFICATIONS
|
|
| Measurement resolution | 1 m |
| Measurement cycle duration | 15 s |
| Current weather phenomenon determination | 9 types |
| Protection | IP 65 |
| Life time | 10 years |
| Interface | V.23, RS485 |
| Power supply voltage | 24 ±2.4 V / 230 ±23 V |
| Interface unit | V.23, RS-485 |
| Power supply voltage | 24 ±2.4 V / 230 ±23 V |
| Power consumption | ≤ 50 W |
| Displayed MOR range | 0 - 75 000 m |
| Measured MOR range | 5 - 50 000 m |
|
MOR accuracy:
|
|
| - 5 to 10 000 m | ± 10% |
| - 10 000 to 50 000 m | ± 20% |
|
Operation environment:
|
|
| - ambient temperature | -60°С to +65°С |
| - relative air humidity | 0 - 98% |
| - atmospheric pressure | 600 -1100 gPa |
| Overall dimensions (L × W × H) | 770×450×4840 mm |
|
Weight:
|
|
| - bridge assembly | 5 kg |
| - pole with mounting plate | 30 kg |
| - intermediate pole | 10 kg |
| - obstruction light | 5 kg |
