S-01 Meteorological Measuring and Information System (hydrometeorological version)
PURPOSE
- Continuous measurement of hydrological and meteorological parameters
- Surveillance over a water body state
- Issue of regime summaries
- Sending reports to information centers
- Hydrological and meteorological information archive management
ADVANTAGES
- WIDE RANGE OF APPLICATIONS:
- hydrology
- water transport
- power engineering - FLEXIBILITY OF SYSTEM BUILDING. The customer can choose the completeness of the delivery, types of equipment and options
- POSSIBILITY OF BUILDING AN AUTONOMOUS SYSTEM. The use of autonomous power sources and the ability to work in automatic mode allows the station to be operated in hard-to-reach places and without operator participation
- COMPLETE SOLUTION. From initial consultation and development to delivery, installation, staff training and technical support
EQUIPMENT CONFIGURATION
- Cup anemometer and wind vane
- Air temperature and relative humidity sensor
- Precipitation gauge
- Barometer
- Water temperature sensor
- Water level sensor
- Water flow rate sensor
- Water muddiness sensor
- Control unit (PC)
- Meteorological tower with lightning rod
- Racks and lifting beams for equipment installation
- Video camera
- Communication box
- 3G/LTE communication terminal
- Battery unit
- Cable set
- Installation kit
- Set of spare parts
- Diagnostic kit
OPTIONAL EQUIPMENT
- Satellite terminal SAT
- Solar battery set
- Wind generator
- Autonomous power supply box

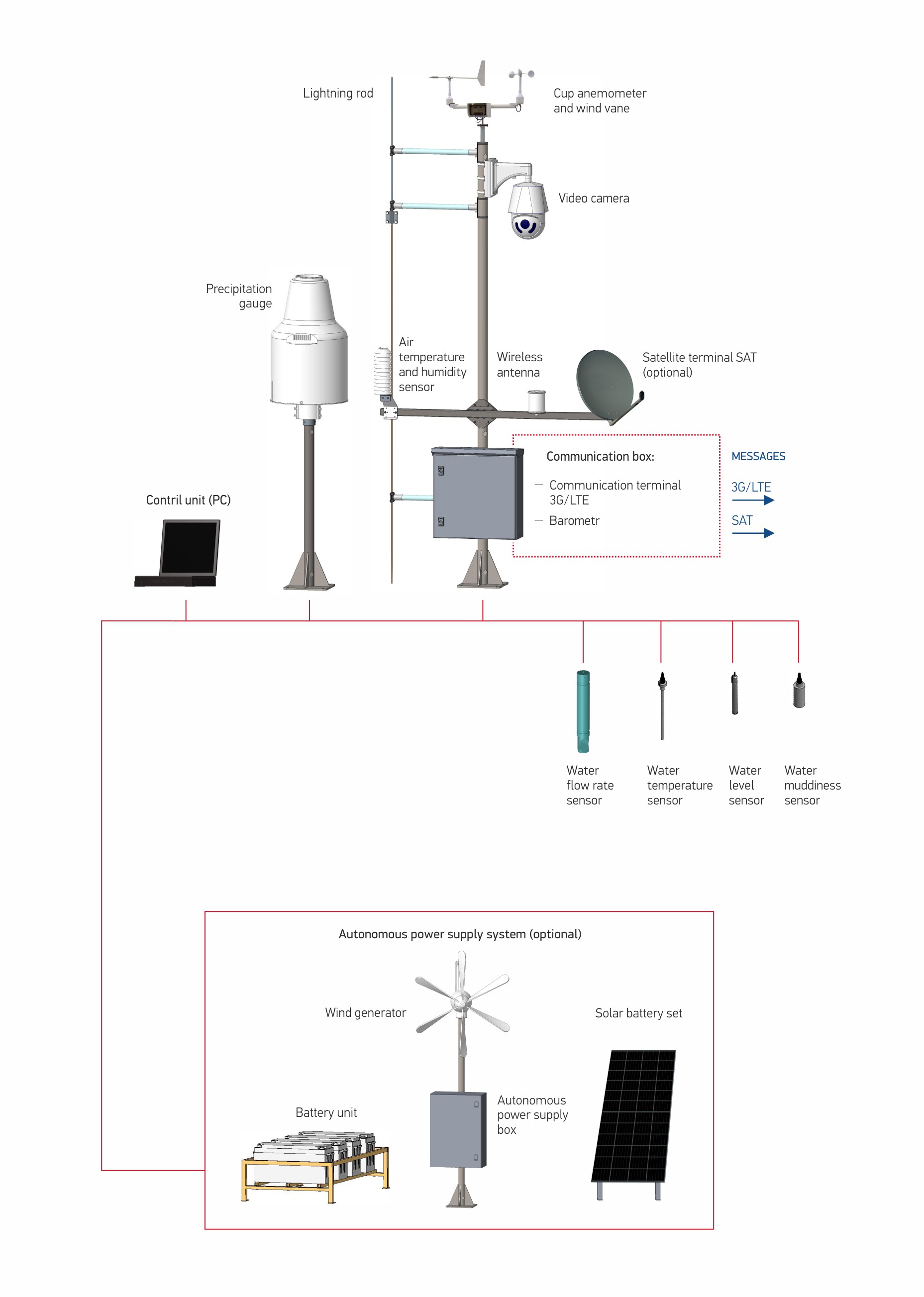

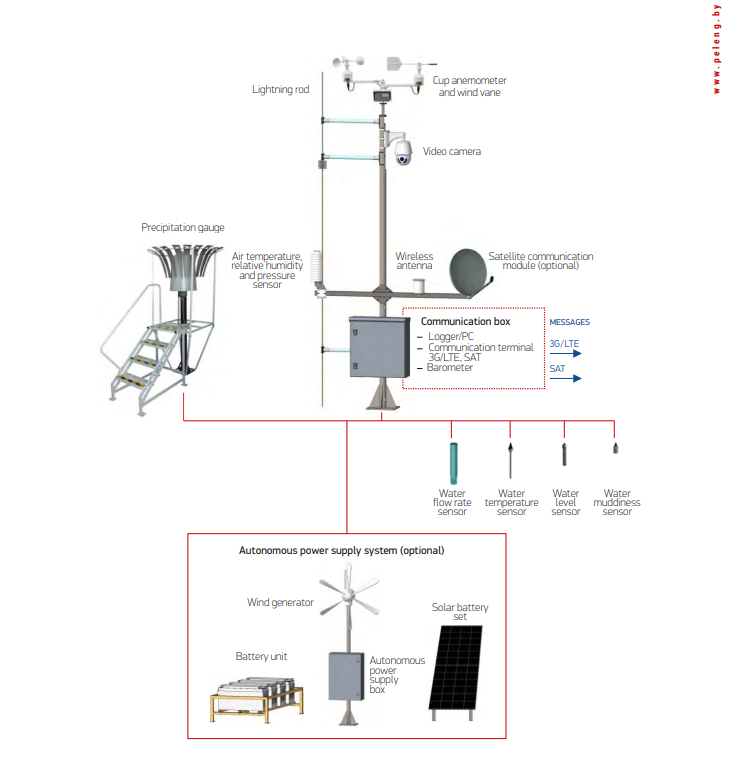

FUNCTIONAL DIAGRAM
MEASURED PARAMETERS
Wind speed: - measurement range - measurement accuracy |
0.3 - 55 m/s ± 0.3 m/s (0.3 - 10 m/s) |
Wind direction: - measurement range - measurement accuracy - response time |
0 - 360° ± 3° 3 s |
Air temperature: - measurement range - measurement accuracy |
-60°С to +60°С ± 0.6°С (-60°С to -50°С) ± 0.4°С (-50°С to +60°С) |
Air pressure: - measurement range - measurement accuracy |
600 - 1100 gPa ± 0.3 gPa |
Relative humidity: - measurement range - measurement accuracy |
2 - 99% ± 4% (2 - 90%) ± 5% (90 - 99%) |
Precipitation: - measurement range - measurement accuracy |
0.1 - 1 500 mm ± 10% (0.1 – 0.2 mm) ± 5% (0.2 - 1 500 mm) |
Water temperature: - measurement range |
-80°С to +80°С |
Water level: - measurement range |
0 - 40 m |
Water flow rate: - measurement range |
-10 to +10 m/s |
Water muddiness: - measurement range |
0.01 – 4 000 NTU |
SPECIFICATIONS
System power supply |
230 ± 23 V (50Hz) |
Data transmission interface |
RS-485/Ethernet, 3G/LTE/SAT |
Protection |
IP 65 |
Average lifetime |
10 years |
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure - wind speed |
-60°С to +65°С 0 -100% 600 -1100 gPa ≤ 55 m/s |
TESTS
- For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2016
- For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
- For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation (including laser emission sources), marking to GOST IEC 61010-1-2014
CERTIFICATES
- Pattern Approval Certificate of Measuring Instruments No. 16226 dated 31.03.2023 issued by the State Committee for Standardization of the Republic of Belarus
- Certificate of ME Type Approval № 80612-20 dated18.03.2021 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
