AMIS-PELENG SF-09 Automated Weather Observing System for Airport

PURPOSE

  • AMIS-PELENG SF-09 is a flexible scalable solution for meteorological support of aircrafts takeoffs and landings, suitable for any type of airport in any corner of the world
  • Operating costs are reduced, the reliability of the system increases, and the customer receives accurate meteorological data at the right time due to the use of the instruments and sensors of our own production in the system



CAPABILITIES

  • Automatic measurement of the main meteorological values required to ensure takeoffs and landings of aircraft
  • Calculation of prevailing visibility (MOR), runway visual range (RVR), perpendicular wind speed to the runway, dew point, runway threshold pressure (QFE), sea level pressure (QNH)
  • Automatic generation of weather reports in METAR (SPECI), ATIS, KN-01 codes, transmission of reports in communication lines and to the display devices
  • Status indication of all measuring transducers (sensors) of meteorological values
  • Manual entry of meteorological values that are not measured or not determined automatically
  • Keeping the AV-6 weather log
  • Keeping the system operation events log
  • Registration and archiving of measured, manually entered, calculated, and transmitted meteorological information



EQUIPMENT CONFIGURATION *

  • AT-21 Transmissometer
  • PELENG SF-03 Cup anemometer and wind vane
  • PELENG SL-03 Nephelometer
  • SD-02 2006 Ceilometer
  • Air temperature and relative humidity sensor
  • PELENG SF-11 Precipitation gauge
  • BRS-1M/BA-1 Barometer
  • Rack
  • Remote display
  • Modem protection module
  • MM-1 Meteorological tower with the lightning rod and winch
  • Obstruction light
  • Accessory kit
  • Installation kit
  • Cable set
  • Set of spare parts
  • Shipping cases
  • Software

*  Each station is constructed according to the modular concept and can be individually configured based on the Сustomer's requirements

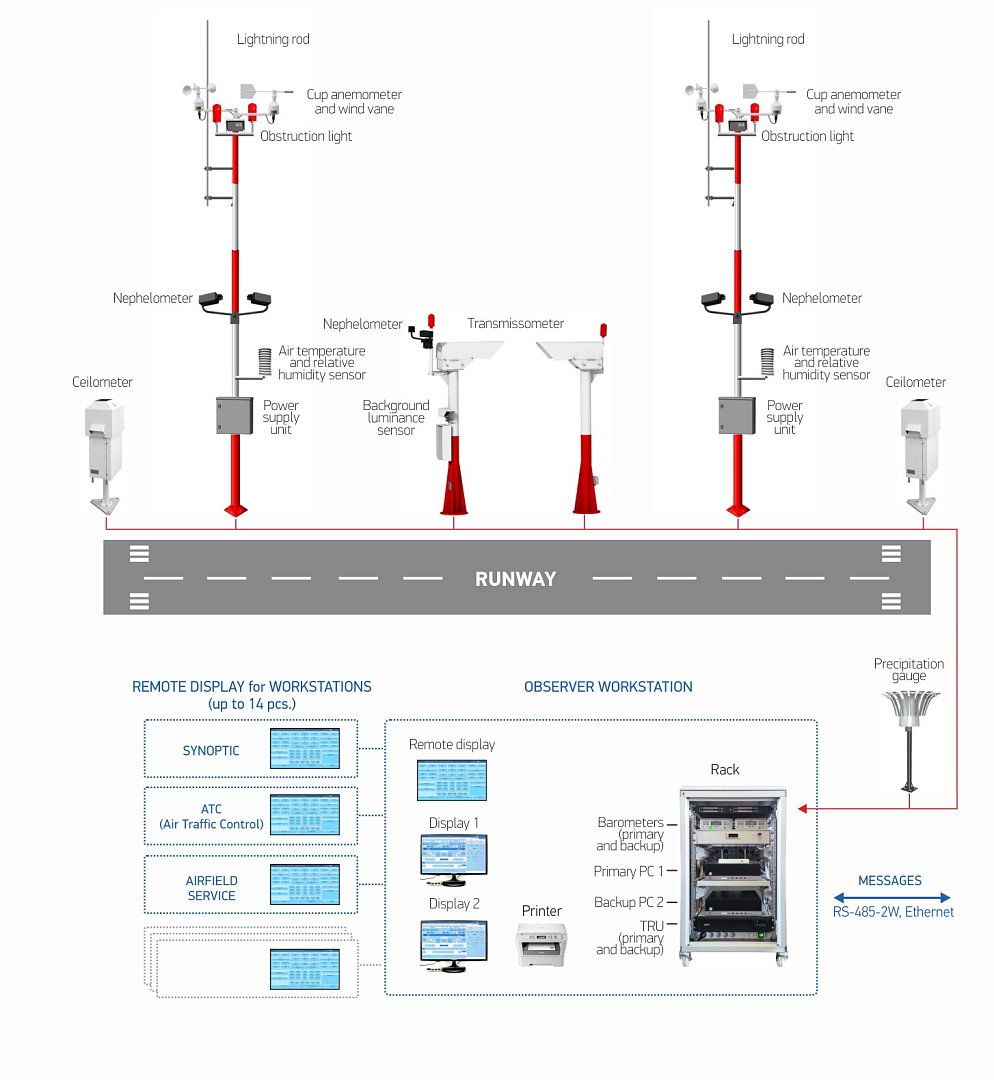

FUNCTIONAL DIAGRAM



MEASURED PARAMETERS*

Wind speed:

- measurement range

- measurement accuracy



0.4 - 75 m/s

± 0.3 m/s (0.4 - 10 m/s)

± 3% (10 - 75 m/s)

Wind direction:

- measurement range

- measurement accuracy

- response time



0 - 360°

± 3°

3 s

Air temperature:

- measurement range

- measurement accuracy



-60°С to +60°С

± 0.6°С (-60°С to -50°С)

± 0.4°С (-50°С to +60°С)

Air pressure:

- measurement range

- measurement accuracy



600 - 1100 gPa

± 0.3 gPa

Relative humidity:

- measurement range

- measurement accuracy



2 - 99%

± 4% (2 - 90%)

± 5% (90 - 99%)

Meteorological optical range (MOR):

- measurement range

- measurement accuracy



5 - 50 000 m

± 10% (5 - 10 000 m)

± 20 % (10 000 - 50 000 m)

Cloud-base height:

- measurement range

- measurement accuracy



5 - 8 000 m (up to three layers)

± 5 m (5-100 m)

± 10% (100 - 2 000 m)

± 5% (2 000 - 8 000 m)

Background luminance:

- measurement range

- measurement accuracy



0 - 30 000 cd/m2

±15%

Precipitation:

- measurement range

- measurement accuracy



0.1 - 250 mm

±(0.10+0.05K) mm

(K - measured precipitation)

* System specifications, including sensors, comply with IAC and ICAO requirements



SPECIFICATIONS

Power supply voltage

230 ± 23 V (50Hz)

Power consumption

≤ 2,5 kW

Data transmission interface

RS-485/Ethernet, V.23, 3G/LTE/SAT

Protection

IP 65

Average lifetime

10 years

Outdoor device's operating conditions:

- air temperature

- relative air humidity

- atmospheric pressure

- wind speed



-60°С to +65°С

0 -100%

600 -1100 gPa

≤ 55 m/s

Indoor device's operating conditions:

- air temperature

- relative air humidity



+5°С to +40°С

≤ 80%



COMPATIBILITY

  • KSA UVD «Alfa»
  • PAK «UniMAS»
  • PAK «MITRA»
  • AS UVD «Topaz»
  • ATIS «Eleron»
  • KSA «AMETIST»
  • AFRS «Popugai 2»
  • AIS «MeteoTelex»
  • AIS «Meteoserver»



TESTS

  • For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2009
  • For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
  • For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation, including laser emission sources)
  • For compliance with TC BY 100230519.177-2005



CERTIFICATES

  • № 15149 issued by the State Committee for Standardization of the Republic of Belarus
  • № 86211-22 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
  • № 384 issued by Interstate Aviation Committee (IAC) Airport and Equipment Certification Committee
  • № 2720 Section of Federal Information Fund for Uniformity of Measurements in the Sphere of National Defense and Security
