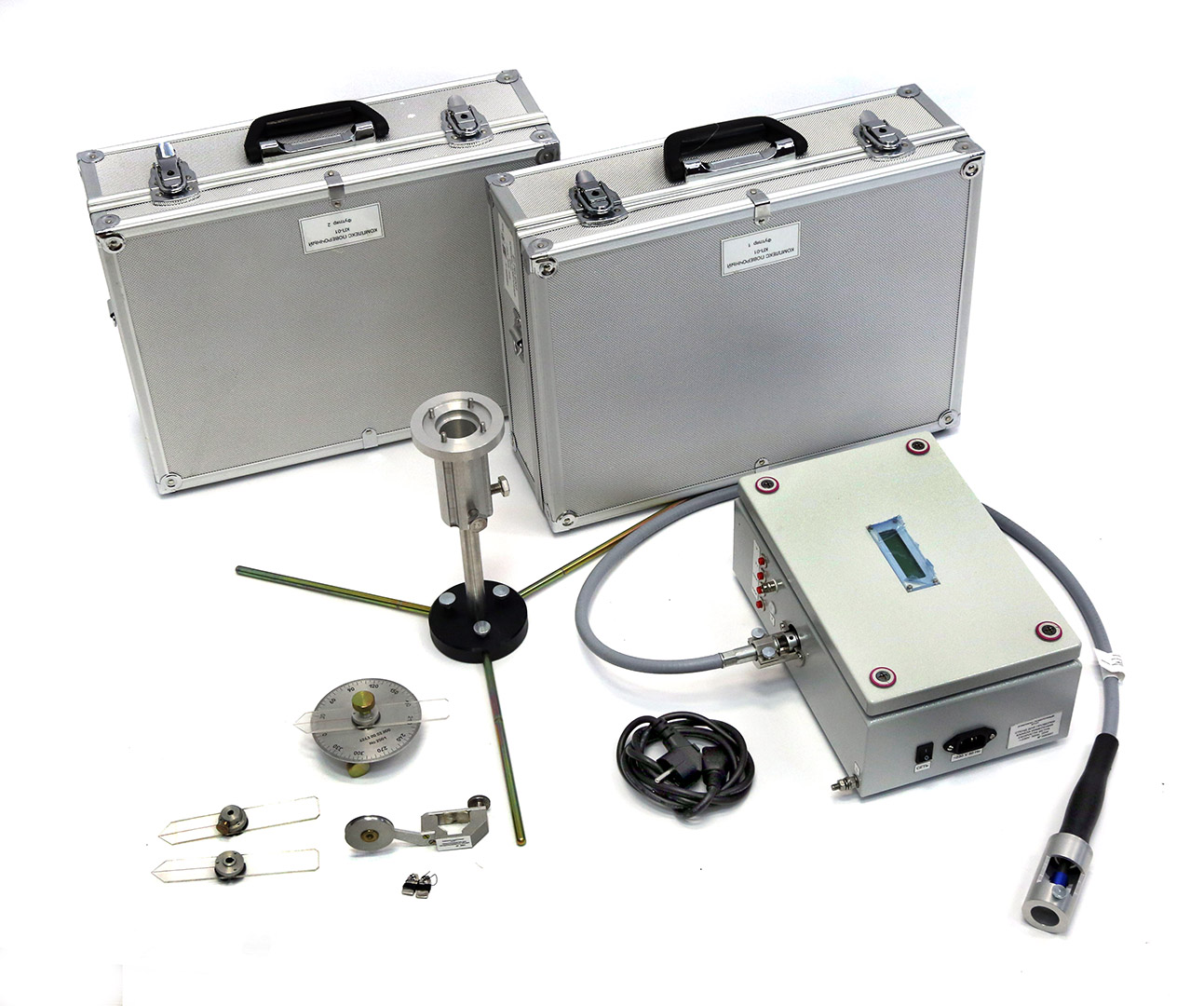

KP-01 Verifying Set
|
PURPOSE
|
|
|
|
|
EQUIPMENT CONFIGURATION
|
|
|
|
|
MAIN SPECIFICATIONS
|
|
|
Reproduction range of shaft speed:
|
|
| - range 1 | 0.0410 - 24.5110 Hz |
| - range 2 | 0.0346 - 25.8835 Hz |
| Limits of tolerable relative error of shaft speed reproduction | ±1% |
| Range of values of the arrow rotation angle of the wind vane test fixture | 0 - 360° |
| Limits of tolerable arrow rotation angle values of the wind vane test fixture | ±1° |
|
Weights for friction torque check:
|
|
|
- for cup anemometer
For cup anemometers and wind vanes manufactured before 2023
|
1-0.1 g, 2.8-0.2 g* |
|
- for wind vane
For cup anemometers and wind vanes manufactured before 2023
|
2-0.3 g, 4.5-0.3 g* |
|
Power supply voltage:
|
|
| - AC mains | 230 V 50 Hz |
| Power consumption | ≤ 20 W |
|
Operating conditions:
|
|
| - air temperature | +15°C to +40°C |
| - relative humidity | 0 - 80% @ 25°C |
|
Dimensions (L×W×H):
|
|
| - case 1 | 465×335×157 mm |
| - case 2 | 465×335×157 mm |
|
Weight:
|
|
| - case 1 | 10 kg |
| - case 2 | 5 kg |
| Life time | 10 years |
|
CERTIFICATION
|
|
