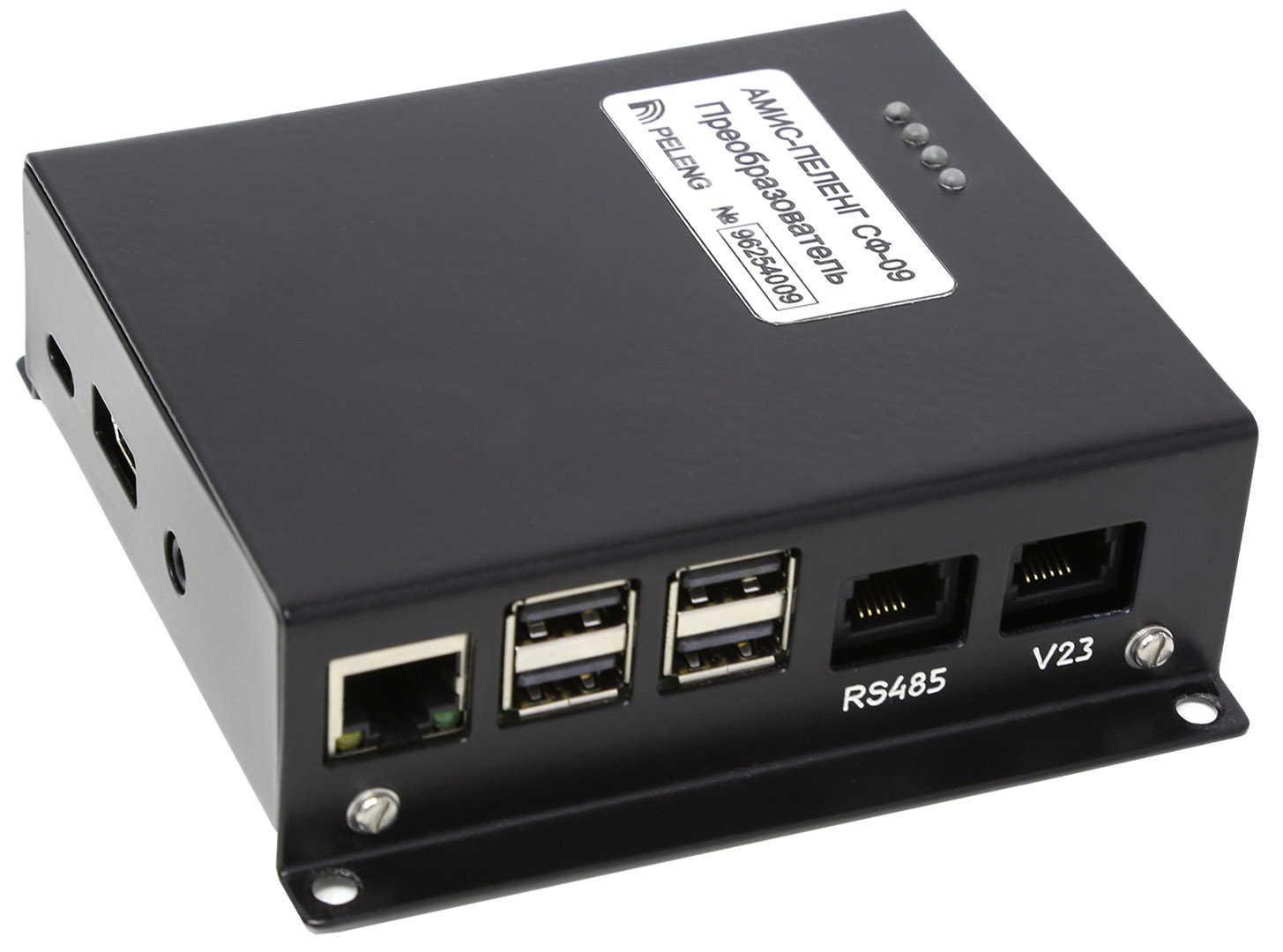

Converter
PURPOSE
- Conversion of METAR/SPECI weather reports, generated in the central rack of the automated weather observing system for airport and helipad AMIS-PELENG SF-09, into images on the display panel
MAIN FEATURES
- Possibility to form a chain (ring) of series-connected display panels
SPECIFICATIONS
|
Interfaces |
V.23, RS-485, Ethernet |
|
Output interface |
HDMI |
|
Power supply voltage |
12 V |
|
Power consumption |
8 W |
|
MTBF |
min 10 000 hours |
|
Life time |
10 years |
|
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure |
+5°С to +40°С 0 -80% 600 -1100 gPa |
