Translator
Translator
PURPOSE
  • Conversion of information messages received from sensors via the RS-485-2W interface communication line to the USB interface channel with the possibility of connecting sensors with a power supply of 6 - 12V, 100 mA
  • Connects directly to the PC's USB port
APPLICATION
  • Meteorology
  • Airfields and helipads
ADVANTAGES
  • DIN 35 mm mounting
  • Possibility to choose the product's set (order code)
ADDITIONAL IMAGES

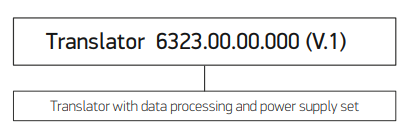

translator order example

translator order example

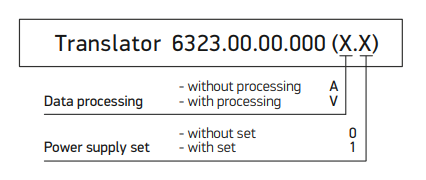

product designation structure

PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
RS-485-2W interface 2 channels
USB interface input
Power supply voltage:
- DC mains 5 V
Power consumption ≤ 1 W
Operating conditions:
- air temperature -40°C to +60°C
- relative humidity 0 - 80%
- atmospheric pressure 60 - 110 kPa
Protection IP 20
Dimensions (L×W×H) 100×18×59 mm
Life time 10 years
