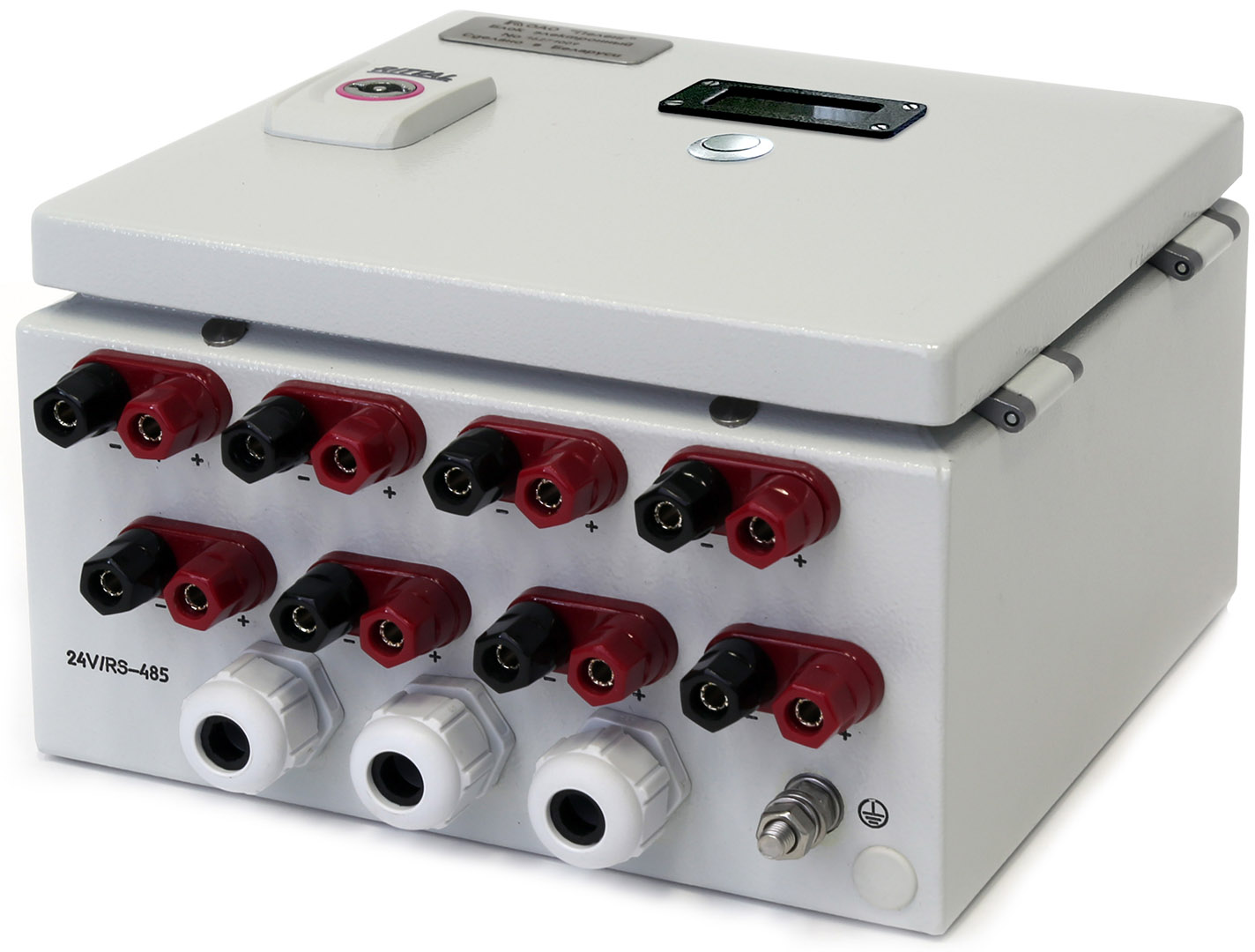

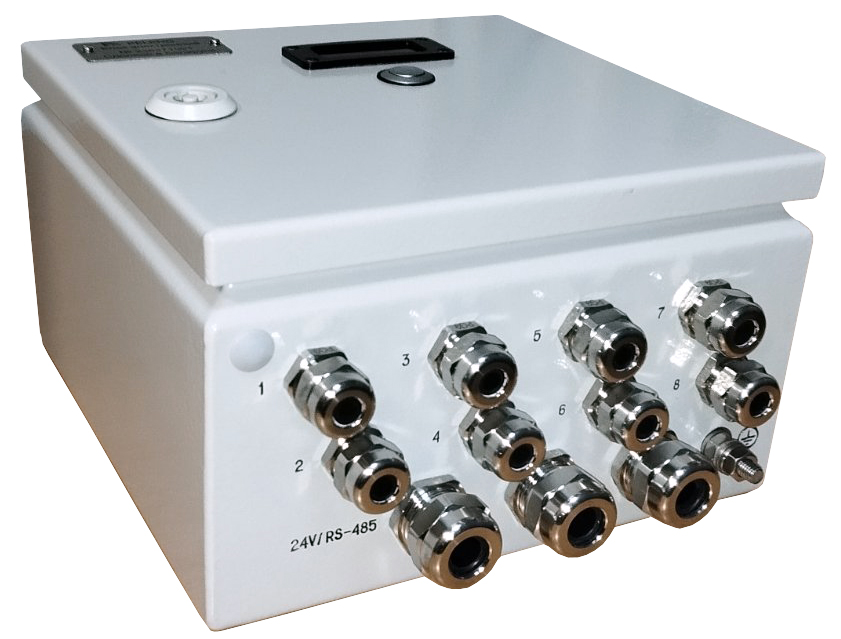

Electronic Unit
PURPOSE
- Convertion of analog signals from devices to digital form
- Commutation of several devices (up to 8 pcs.) into a single system
- Converted signal transfer to PC via RS-485 interface
MAIN FEATURES
- Possibility of combining devices with analog output signal into a single system Increased measurement accuracy and resource optimization due to large number of channels
OPTIONAL EQUIPMENT
- External storage for data logging (SD card 16 GB)
SPECIFICATIONS
|
Number of channels (connected devices) |
8 |
|
Analog Input range |
-50 mV to 50 mV |
|
Measurement cycle duration |
3 s |
|
Power supply voltage |
24 ± 2.4 V |
|
Interface |
RS-485 |
|
Protection |
IP 65 |
|
MTBF |
10 000 hours |
|
Life time |
10 years |
|
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure |
-60°С to +80°С 0 -100% 600 -1100 gPa |
|
Overall dimensions (L × W × H) |
200×200×120 mm |
|
Weight |
3 kg |
