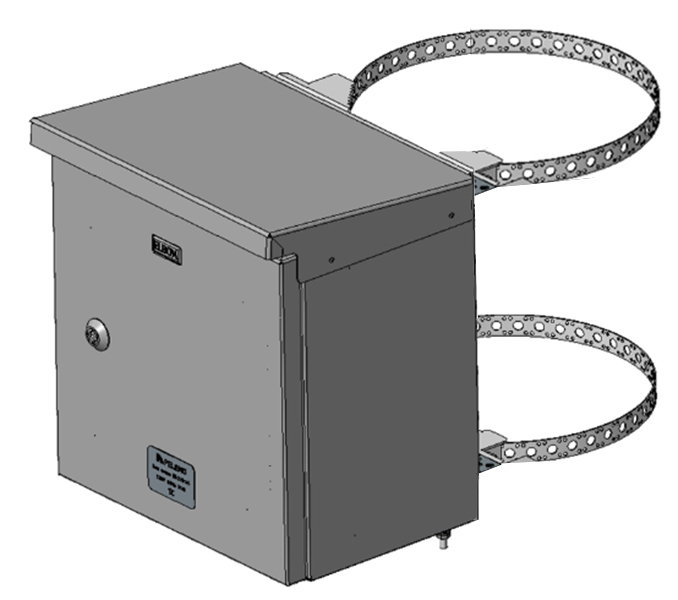

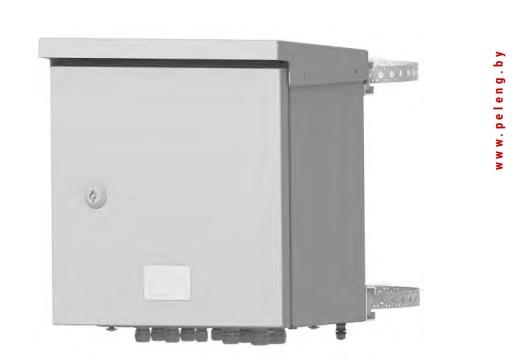

Power Supply Unit
PURPOSE
- Designed for supplying stabilized DC voltage 24V from single-phase 230V 50Hz electrical network
OPTIONAL EQUIPMENT
- Photosensor (for obstruction light)
- Heater with thermostat for low temperature operation
- LTE modem with outdoor antenna
- External battery (inside a sealed box)
ADVANTAGES
- WIDE RANGE OF OPTIONS. The Customer may choose the contents of delivery and options
- OPERATION UNDER LOW TEMPERATURE CONDITIONS. The power supply body and the sealed external battery box are equipped with a thermostatically controlled heater and insulating layer

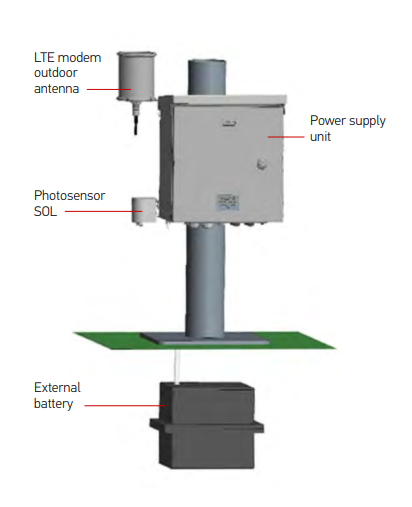

FUNCTIONAL DIAGRAM
SPECIFICATIONS
|
Input voltage |
230 ± 23 V (50 Hz) |
|
Output voltage |
24 V |
|
Maximum output current |
2 A |
|
Protection |
IP 65 |
|
Surge protection |
+ |
|
Short circuit protection |
+ |
|
Mechanical lock |
+ |
|
Roof assembly (weather protection) |
+ |
|
Mount (on mast, rack, wall) |
+ |
|
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure |
-60°С to +65°С 0 -100% 600 -1100 gPa |
|
MTBF |
min 9 000 hours |
|
Overall dimensions (L × W × H) |
345×310×350 mm |
|
Weight: - power supply unit - external battery - antenna - photosensor |
15 kg 8 kg 0.2 kg 0.1 kg |
