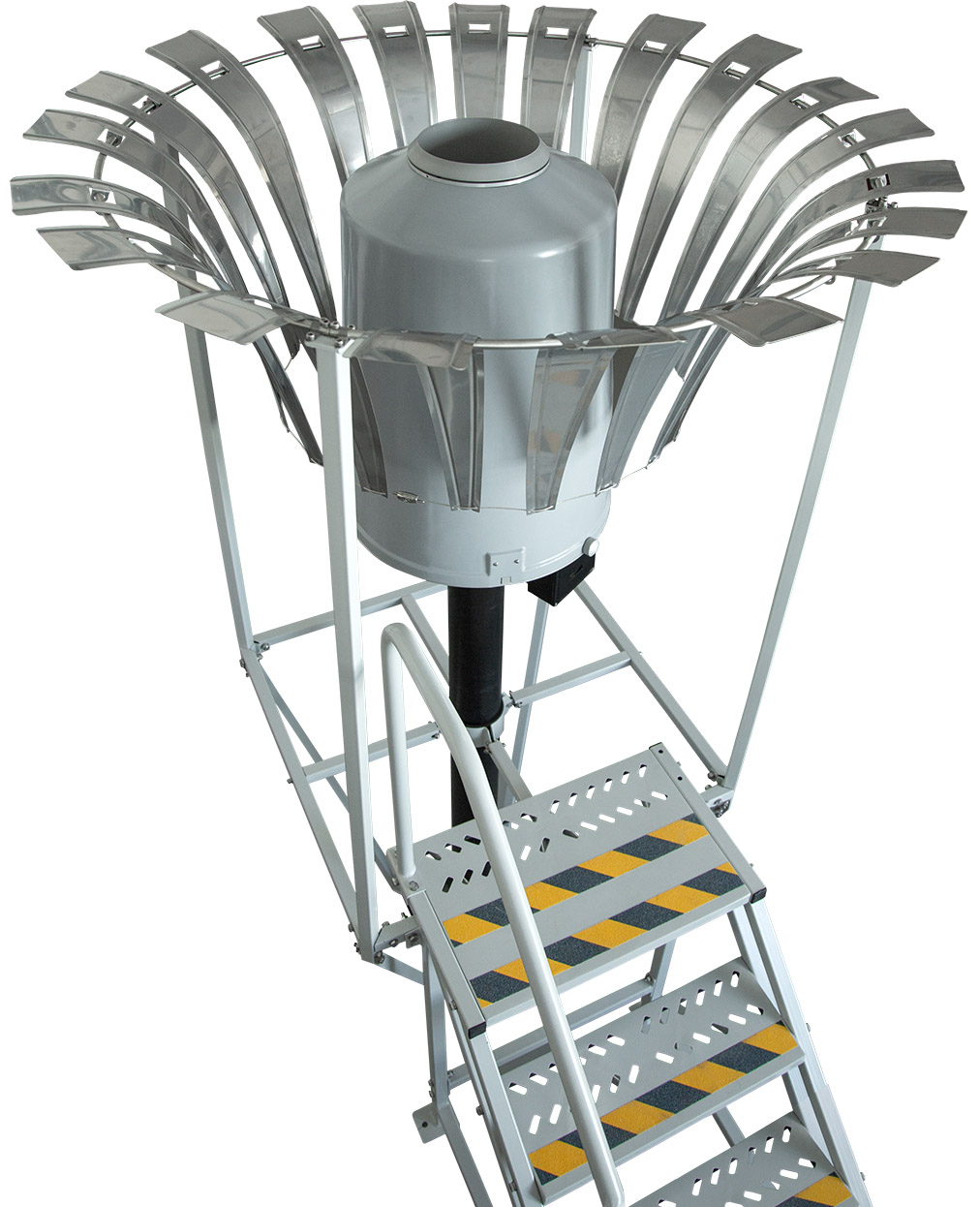

DO-22 Precipitation Gauge

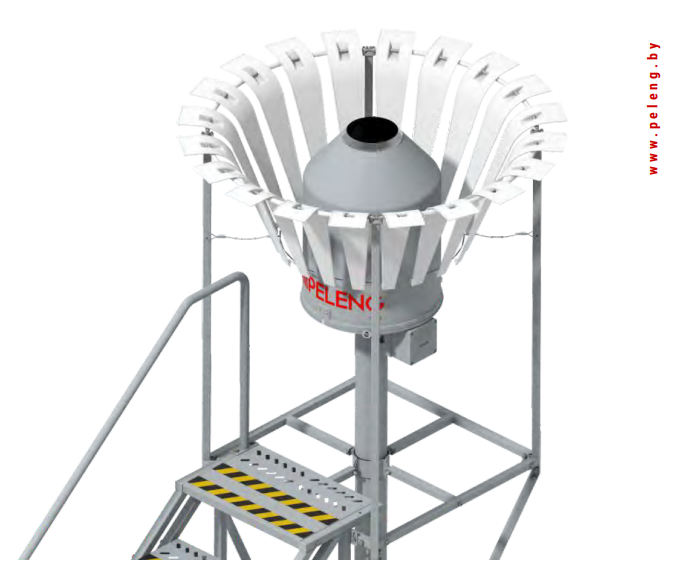

DO-22 Precipitation Gauge
PURPOSE
  • Measurement of quantity and intensity of precipitation: liquid, solid, mixed
APPLICATION
  • Meteorology
  • Airfields and helipads
  • Hydrology
  • Agriculture
  • Industrial enterprises
  • Military meteorology
ADVANTAGES
  • Measurement of all types of precipitation
  • Heated receiving hole
  • Altera or Tretyakov wind protection
  • Tretyakov wind protection can be supplied with plastic or metal plates
  • A special mechanism for opening the windshield
  • Display of information on external indicator
  • Attached ladder
  • Possibility to simulate sensor messages from other manufacturers with console customization
  • Offline software
  • Possibility to choose the product's set (order code)
OPTIONAL EQUIPMENT
  • Translator
  • Power supply unit BP-220-24
ADDITIONAL IMAGES

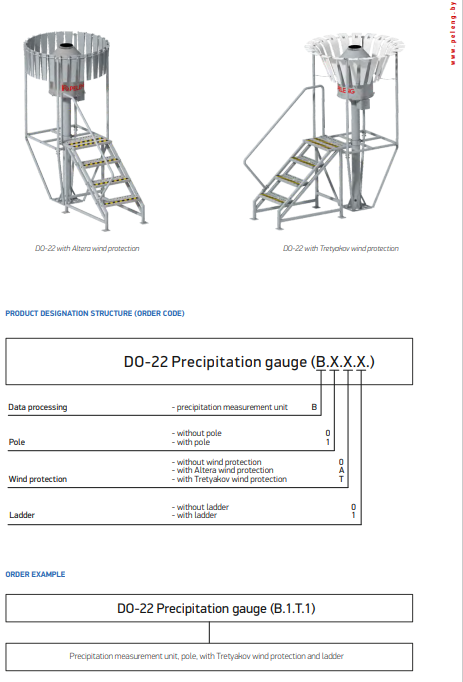

product designation structure

PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
Receiving hole area 200 cm²
Measurement range 0.2 - 1500 mm
Measurement error ± 0.2 mm (from 0.2 to 1 mm)
± 5% (more than 1 to 1500 mm)
Operation mode automatic message or upon request
Message interval 15 - 60 s (adjustable)
Power supply voltage:
- DC mains 12 - 24 V
Power consumption including heating ≤ 50 W
Output interface RS-485-2W, V23
Communication protocol ASCII
Operating conditions:
- air temperature -50°C to +65°C
- relative air humidity 0 - 100%
- atmospheric pressure 60 - 110 kPa
Protection IP 66
Dimensions (L×W×H):
- precipitation measurement unit Ø450×700 mm
- pole 300×300×1400 mm
- Tretyakov wind protection Ø1220×2000 mm
- Altera wind protection Ø1060×2010 mm
- ladder 1250×650×1530 mm
Weight:
- precipitation measurement unit 20 kg
- pole 23 kg
- Tretyakov wind protection 21 kg
- Altera wind protection 24 kg
- ladder 30 kg
Life time 10 years
CERTIFICATION
№93599-24 Federal Agency on Technical Regulation and Metrology (Russian Federation)
№ 17672 issued by the State Committee for Standardization of the Republic of Belarus
SOFTWARE
Peleng Meteo
APPLICATION
