S-01 Meteorological Measuring and Information System (small size portable version)

PURPOSE

  • Continuous collection and processing of meteorological information coming from sensors at the location of deployment of the mobile system
  • Formation of regime summaries
  • Formation of regular and "storm" telegrams
  • Sending telegrams to meteorological information collection centers
  • Maintaining an archive of meteorological information



ADVANTAGES

  • MOBILITY. The system is delivered to the place required by the customer using light freight vehicles (LCV) due to its shipment in the shipping cases
  • DEPLOYMENT SPEED IS 15 MINUTES
  • RESOURCE OPTIMIZATION. The station staff is 1 person
  • HIGH AUTONOMY. The power supply can be performed through from the vehicle mains and from storage batteries, a diesel generator or solar batteries
  • COMPREHENSIVE SOLUTION. From initial consultation and development to the delivery, mounting, personal training and maintenance



EQUIPMENT CONFIGURATION

  • Multifunctional weather sensor
  • Soil temperature sensor
  • Controller
  • Control unit (PC)
  • Battery unit
  • Dismountable mast
  • Compass
  • Shipping cases
  • Cables set
  • Installation kit
  • Set of spare parts



OPTIONAL EQUIPMENT

  • Communication terminal 3G/LTE/SAT
  • Solar battery set

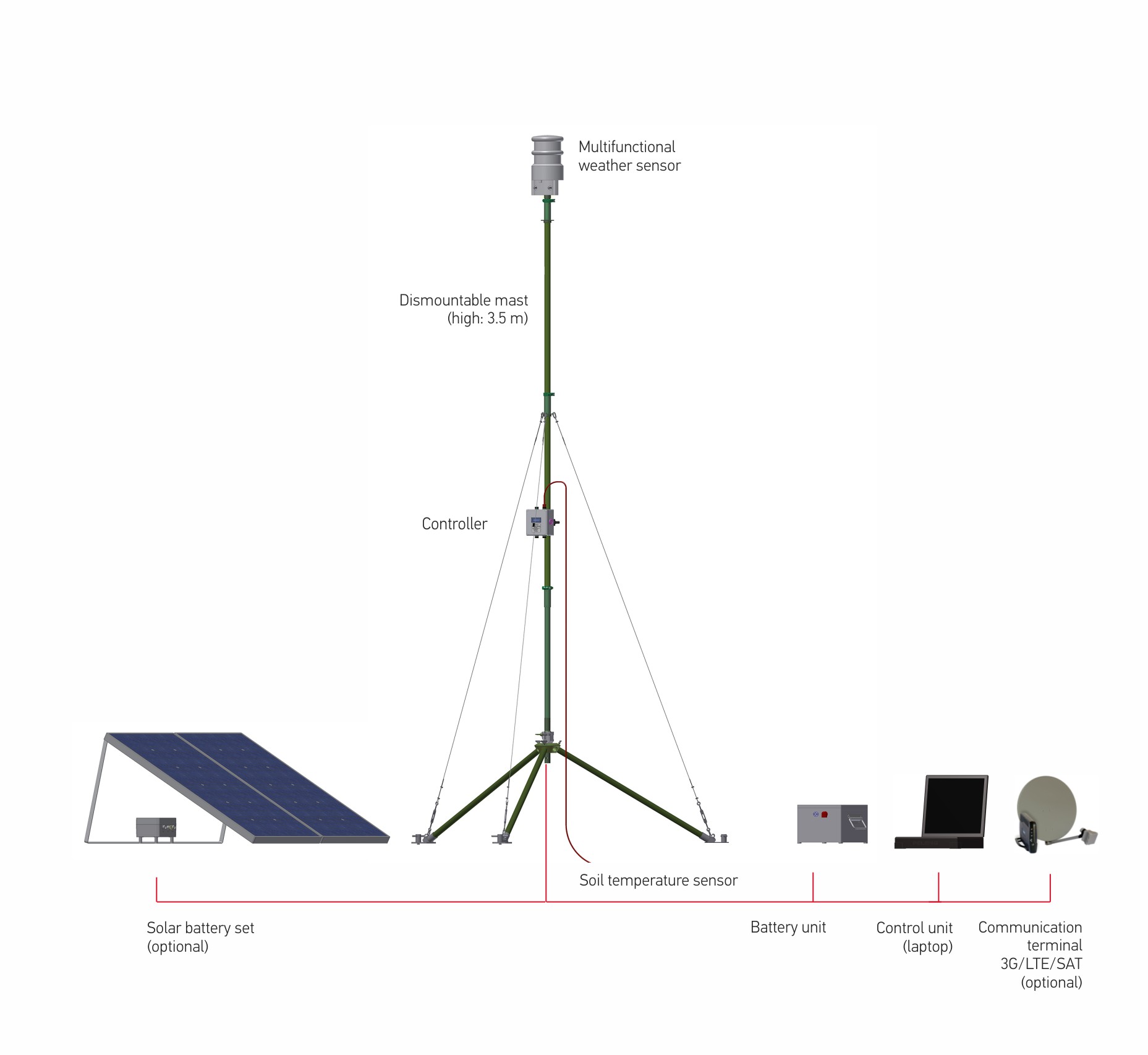

FUNCTIONAL DIAGRAM



MEASURED PARAMETERS

Wind speed:

- measurement range

- measurement accuracy



0.2 - 60 m/s

± 0.5 m/s (0.2 - 10 m/s)

± 5% (10 - 60 m/s)

Wind direction:

- measurement range

- measurement accuracy

- response time



0 - 360°

± 3°

3 s

Air temperature:

- measurement range

- measurement accuracy



-50°С to +60°С

± 0.5°С (-60°С to -50°С)

± 0.3°С (-50°С to +60°С)

± 0.4°С (-50°С to +60°С)

Air pressure:

- measurement range

- measurement accuracy



600 - 1 100 gPa

± 0.5 gPa

Relative humidity:

- measurement range

- measurement accuracy



0 - 100%

± 3% (10% - 90%)

± 5% (90% - 100%)

Soil temperature

- measurement range

- measurement accuracy



-55°С to +65°С

± (0.2+0.002·|t|)



SPECIFICATIONS

System power supply:

- by DC mains of the vehicle

- by AC mains



9 - 36 V

230 ± 23 В (50Hz)

Off-line operation time

not less 8 hours

Data transmission interface

RS-485/Ethernet,

3G/LTE, SAT (option)

Protection

IP 65

Operating temperature:

- operating from batteries

- operating from mains sources



-25°С to +50°С

-55°С to +60°С

Mast height

3.33 m

Mast overall weightt

7.3 kg

Battery unit weight

5.2 kg

System overall mass (gross / net)

58 / 38 kg

System overall dimensions in shipping cases (3 units)

0.58 m3



TESTS

  • For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2016
  • For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
  • For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation (including laser emission sources), marking to GOST IEC 61010-1-2014



CERTIFICATES

  • Pattern Approval Certificate of Measuring Instruments No. 16226 dated 31.03.2023 issued by the State Committee for Standardization of the Republic of Belarus
  • Certificate of ME Type Approval № 80612-20 dated18.03.2021 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
