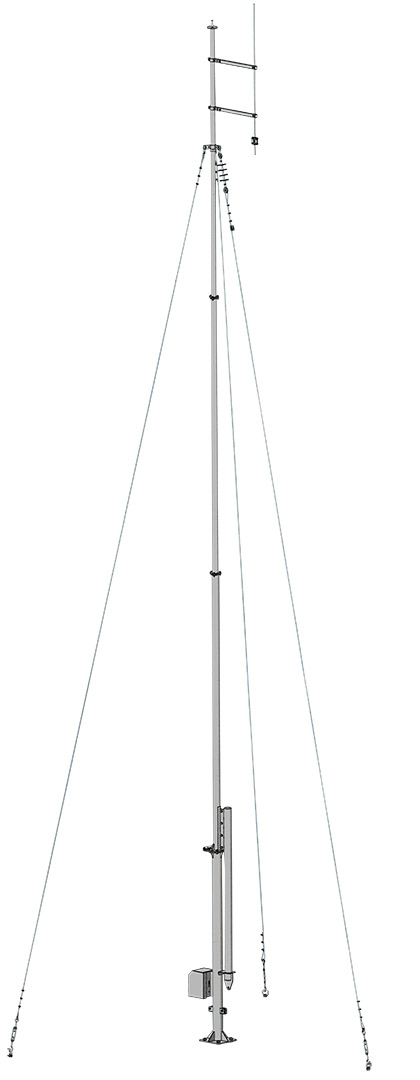

ММ-1 Meteorological Tower with the Lightning Rod and Winch
|
PURPOSE
|
|
|
|
|
ADVANTAGES
|
|
|
|
|
EQUIPMENT CONFIGURATION
|
|
|
|
|
ADDITIONAL IMAGES
|
|

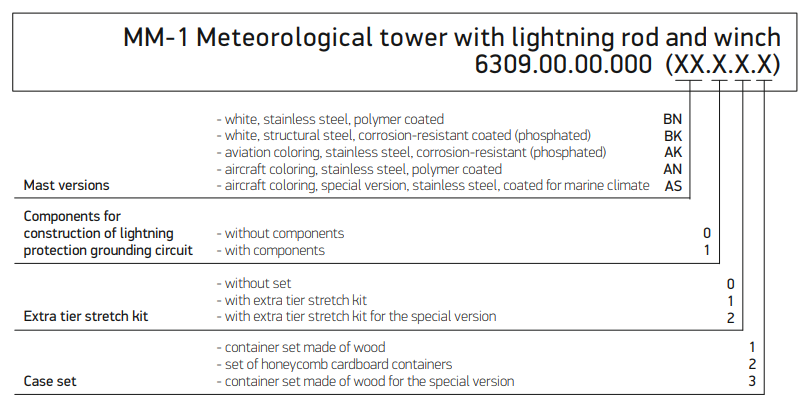

PRODUCT DESIGNATION STRUCTURE (ORDER CODE) |
|
|
MAIN SPECIFICATIONS
|
|
| Mast height | 10 m |
| Distributed load capacity | 75 kg |
| Load at the top of the mast | 15 kg |
|

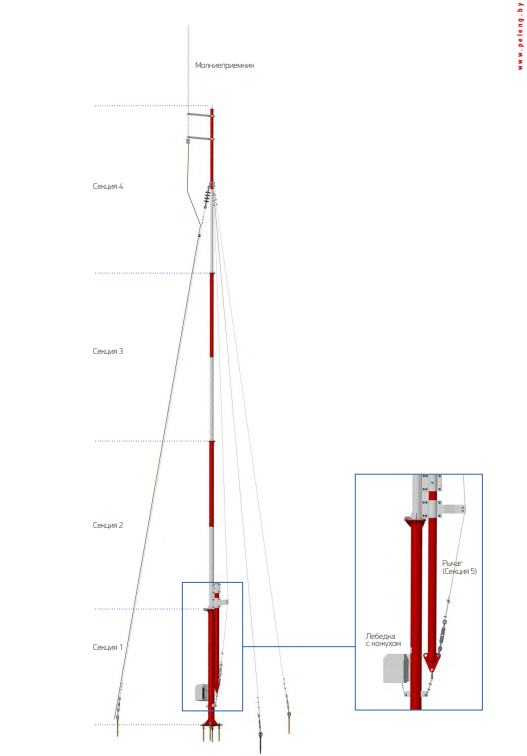

Mast sections (pipes) diameter:
|
|
| - section 1 | Ø102 mm |
| - section 2 | Ø76 mm |
| - section 3 | Ø60 mm |
| - section 4 | Ø48 mm |
| - lever (section 5) | Ø76 mm |
|
Main winch specifications:
|
|
| - payload | 1000 kg |
| - cable diameter | 6 mm |
| - cable weight | 5 kg |
|
Operating conditions:
|
|
| - air temperature | -60°C to +65°C |
| - relative air humidity | 0 - 100% |
| - atmospheric pressure | 60 - 110 kPa |
| - wind speed | 0 - 60 m/s |
| Mast weight | 90 kg |
| Overall mast weight with winch, lightning rod, cable set and installation kit (net) | 140 kg |
| Life time | 10 years |
