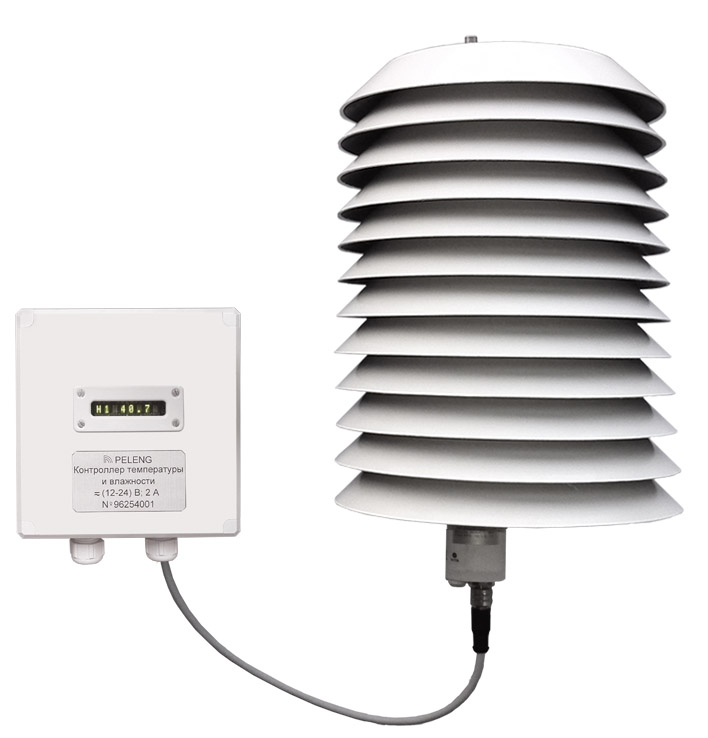

Air Temperature and Humidity Sensor
MAIN FEATURES
- Air temperature and humidity sensor is delivered with platinum resistivity thermometer Pt100 and humidity unit HUMICAP*180
COMPLETE SET
- Air temperature and humidity sensor is protected against radiation
- Temperature and humidity controller
CERTIFICATES
- № 15149 State Committee for Standardization of the Republic of Belarus
- № 86211-22 Federal Agency on Technical Regulation and Metrology (Russian Federation)
SPECIFICATIONS
|
Air temperature measurement range |
-60°С to +60°С |
|
Air temperature measurement accuracy: - 60°С to -50°С - 60°С to -50°С |
± 0.6°С ± 0.4°С |
|
Relative air humidity measurement range: |
2 - 99% |
|
Relative air humidity measurement accuracy: - 2% to 90% - 90% to 99% |
± 4% ± 5% |
|
Measurement cycle duration |
20 s |
|
Interface |
V.23, RS-485 |
|
Protection |
IP 65 |
|
Life time |
10 years |
|
Power supply voltage |
24 ± 2.4 V |
|
Overall dimensions (L × W × H) |
120×120×320 mm |
|
Weight |
3 kg |
