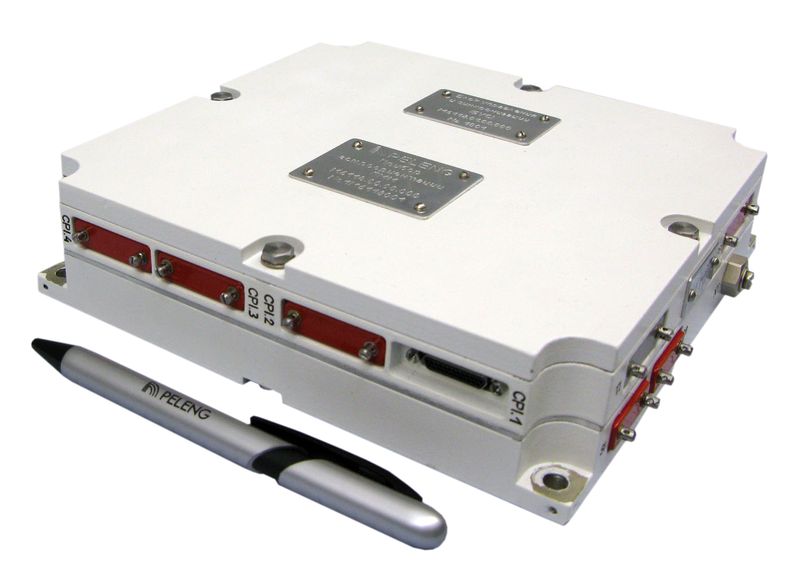

Control and Syncronization Unit
PURPOSE
Star tracker control and data exchange with satellite onboard systems.
SPECIFICATIONS
| Overall dimensions, mm | 200 х 186 х 50 |
| Mass, kg , max | 2,6 |
| Nominal power supply voltage, V | 27, 12*, 42*, 100* |
| Nominal power consumption, W | 12 |
| Command and data interface | MIL-STD-1553B, RS422*, CAN* |
| Timing (synchronization) interface | available |
| Nonvolatile storage capacity, Gb | 8, 0*, 16*, 24* |
