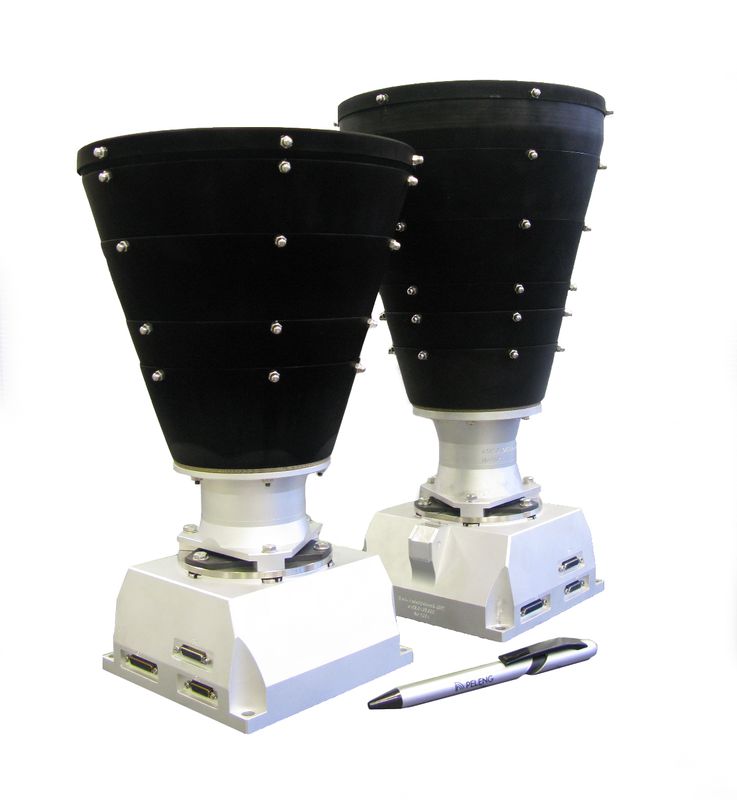

Star Trackers
PURPOSE
Operation in payload or satellite attitude control system.
DETAILS
CMOS sensor based autonomous star trackers with integrated angular speed measurement module.
STAR TRACKER SUBSYSTEMS
- electronic unit;
- lens telescope;
- aligner ring;
- baffle;
- software;
- package and cable set (as agreed).
Specifications
| Focal distance, mm | 45 | 65 | 100 |
| Sampling rate, Hz | 12 | 10 | 8 |
| LOS attitude determination error, arcsec | 1,4 | 1,0 | 0,8 |
| Power consumption, W | 12 | ||
| Mass, kg | 2,45 | 2,75 | 2,75 |
