TV Recording Station
CAPABILITIES
Recording of the flying objects images on a magnetic carrier against standard backgrounds under day and night conditions with further processing of the recorded data by means of software
COMPLETE SET

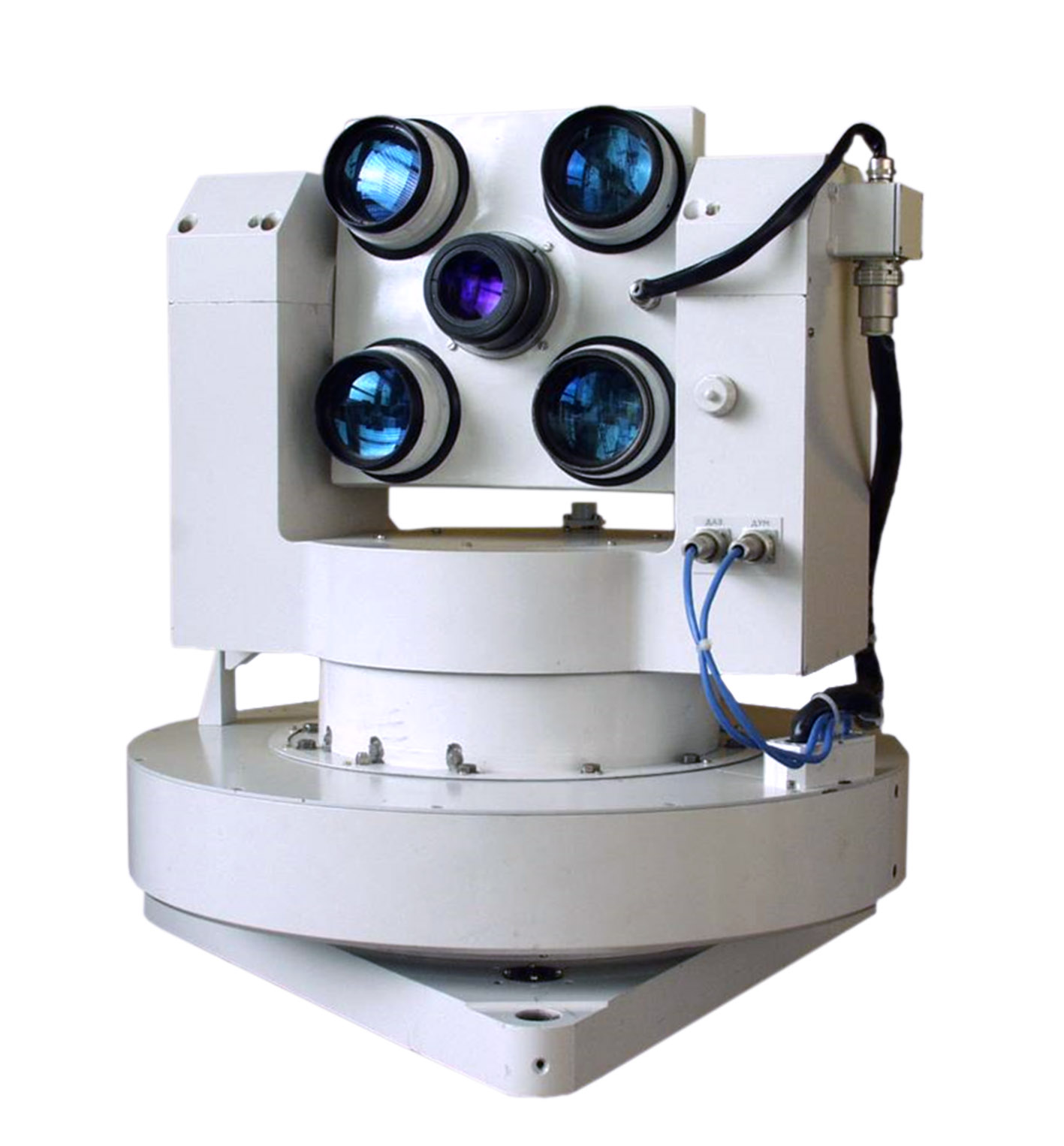

- Two theodolite posts
- Control and recording equipment
Specifications
| Root-mean-square instrumental error of ttheodolite when defining the point object angular coordinates in static, provided the elevation angle is max 60º, max | 25'' |
| Resolution capability of two stars woth the same brightness, max | 35'' |
| Liminal illuminance of TV channels lenses, which is equivalent to noise, in the operating spectral range, while storage time is 1 ms, W/cm2, max | 2 x 10-10 |
| Theodolite field of view | 20° x 20° |
| Lenses aperture | 1 : 1,3 |
| Frame frequency, Hz | 0,5; 1; 2; 5; 10; 12,5 |
| Theodolite mass, kg, max | 90 |
| Power supply from AC mains (220±22) V, 50 Hz | |
| Operating modes: - night shooting of objects against the background of stars with multiple exposure of moving objects for one frame; - daytime shooting of an illuminated object; - shooting of a long shining object; - continuous shooting of an area by two theodolites. |
|
