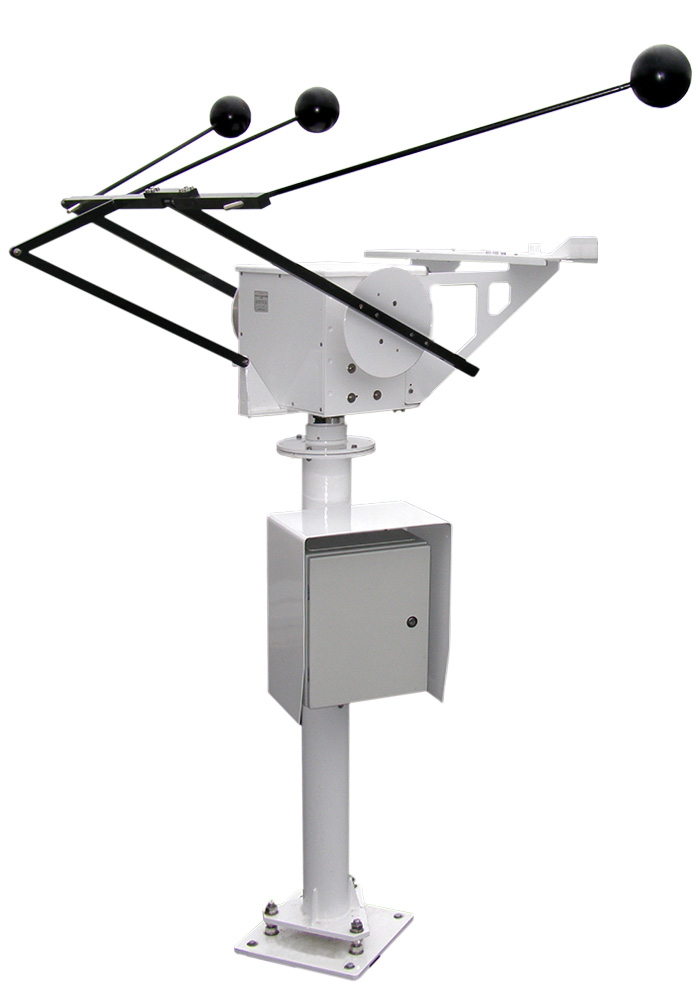

PSS-1 Sun Tracker
PURPOSE
- Sun tracking for actinometric devices pointing
- Primary use - for actinometric stations
EQUIPMENT CONFIGURATION
- Attitude control unit
- Base
- Shading ball assembly
- Software
- Installation kit
OPTIONAL EQUIPMENT
- PC
- Power supply (AC 220V 50Hz)
SPECIFICATIONS
|
Rotation: - in azimuth - in zenith |
345° 90° |
|
Pointing error: - in azimuth - in zenith |
± 0.5° ± 0.5° |
|
Reproducibility of pointing: - in azimuth - in zenith |
± 0.05° ± 0.05° |
|
Resolution |
2' |
|
Daily time error |
± 2 s |
|
Interface |
V.23, RS-485 |
|
Protection |
IP 53 |
|
Life time |
6 years |
|
Power supply voltage |
24 ±2.4 V / 220 ±23 V |
|
Power consumption |
≤ 150 W |
|
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure |
-50°С to +50°С 0 - 98% 600 -1100 gPa |
|
Overall dimensions (L × W × H) |
1250×1400×2100 mm |
|
Weight |
80 kg |
