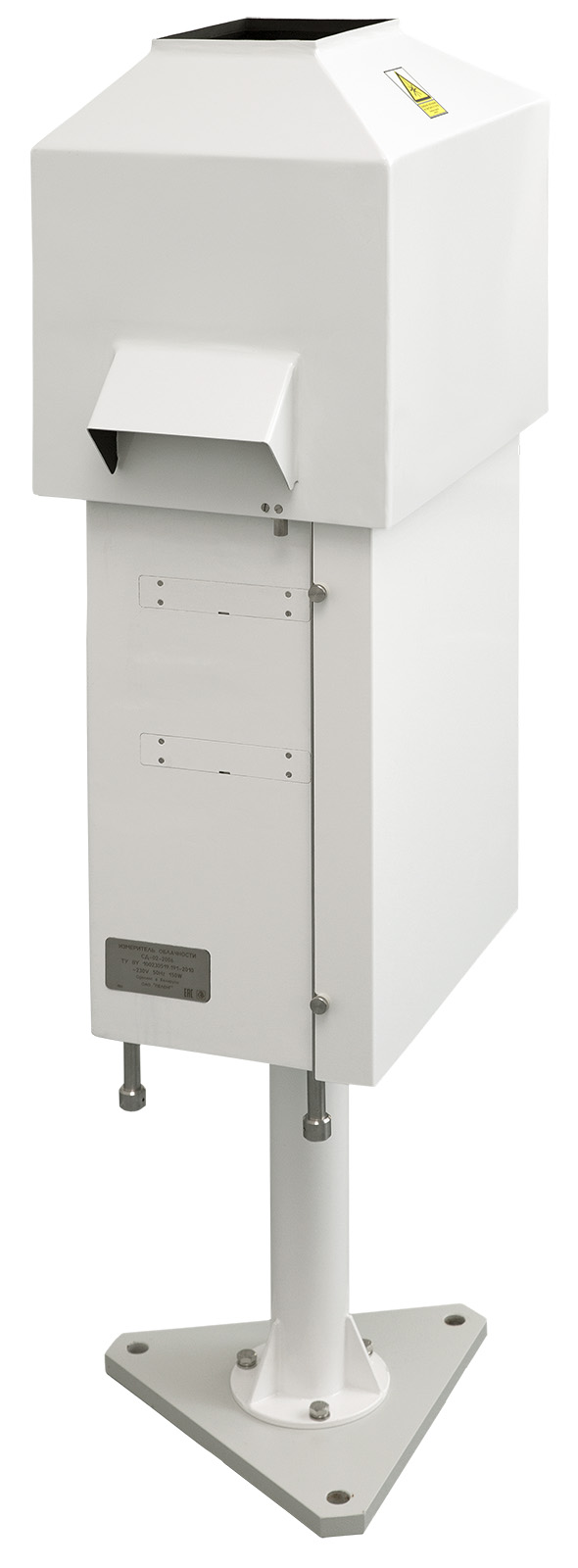

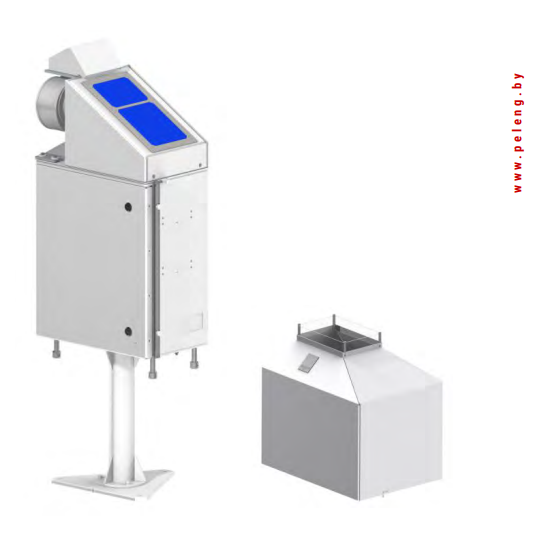

SD-02-2006 Ceilometer

PURPOSE
Cloud-base height measurement. Operation principle is based on atmospheric backscatter measurement
APPLICATION
Meteorology Airfields and helipads Maritime segment
ADVANTAGES
Operation principle is based on atmospheric backscatter measurement Up to three cloud layers are determined Determination of vertical visibility Calculation of sky coverage by clouds (in point and octant formats) Possibility to simulate sensor messages from other manufacturers with console customization Built-in automatic self-test system Offline software Hydrophobic coat Protection of communication lines from thunderstorms Protection against birds Certified by the Russian Maritime Register of Shipping as part of the AMIS-PELENG SF-09 system
EQUIPMENT CONFIGURATION
Optoelectronic unit Installation kit Set of spare parts, tools and accessories
OPTIONAL EQUIPMENT
Translator
MAIN SPECIFICATIONS
Measurement range	5 - 8000 m
Measurement error	± 5 m (from 5 to 100 m) ± 10% (more than 100 to 2000 m) ± 5% (more than 2000 to 8000 m)
Operation mode	automatic message or upon request
Message interval	15 s
Power supply voltage:
- AC mains	230 V 50 Hz
Power consumption	≤ 150 W
Output interface	RS-485-2W, V.23
Communication protocol	ASCII
Operating conditions:
- air temperature	-60°C to +65°C
- relative humidity	0 - 100%
- atmospheric pressure	60 - 110 kPa
Protection	IP 66
Dimensions (L×W×H)	530×340×1400 mm
Weight:
- ceilometer	42 kg
- pole with mounting plate	26 kg
Life time	10 years
CERTIFICATION
№ 15102 issued by the State Committee for Standardization of the Republic of Belarus
№ 96282-25 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
№ 545 issued by Interstate Aviation Committee. Airport and Equipment Certification Committee

SOFTWARE
INGO
Peleng Meteo CL
