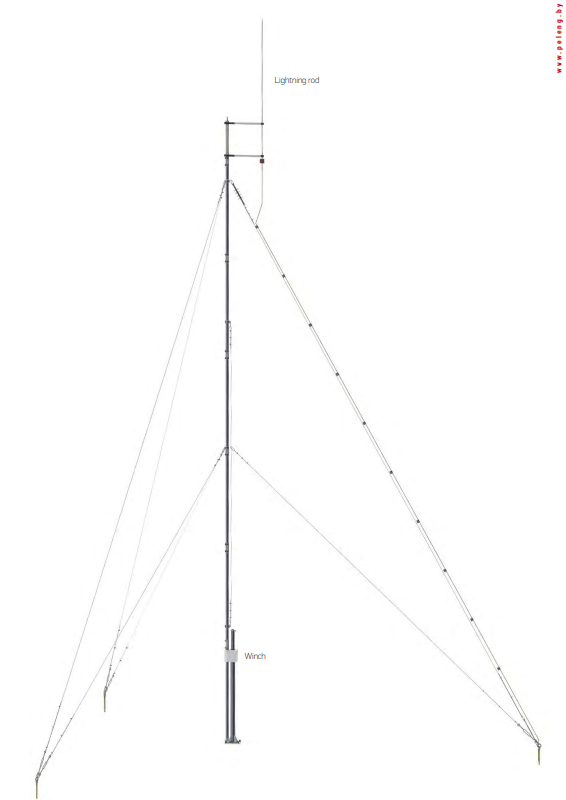

MM-2 METEOROLOGICAL MAST
|
PURPOSE
|
|
|
|
|
ADVANTAGES
|
|
|
|
|
EQUIPMENT CONFIGURATION
|
|
|
|
|
ADDITIONAL IMAGES
|
|
Position of the MM-2 mast in which the meteorological equipment is installed |
|
|
MAIN SPECIFICATIONS
|
|
|
Mast height (depending on number of sections):
|
|
| - one section | 3.85 m |
| - two sections | 5.4 m |
| - three sections | 6.95 m |
| - four sections | 8.5 m |
| - five sections | 10.05 m |
| Distributed load capacity | 70 kg |
|
Operating conditions:
|
|
| - air temperature | -60°C to +65°C |
| - relative air humidity | 0 - 100% |
| - atmospheric pressure | 60 - 110 kPa |
| - wind speed | 0 - 60 m/s |
| Mast weight | 60 kg |
| Overall mast weight with winch, lightning rod, cable set, installation kit and tripod (net) | 106 kg |
| Life time | 10 years |
