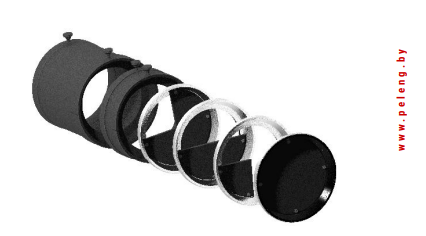

KF SET OF FILTERS
KF SET OF FILTERS
PURPOSE
  • Meteorological parameters check of meteorological optical range meters PELENG SF-01 during verification process
  • Filters from the set attenuate the luminous flux in the working area of the device thus simulating various values of meteorological optical range
EQUIPMENT CONFIGURATION
  • Set of filters (25; 50; 75)
  • Light-tight filter
  • Frame
  • Case set
MAIN SPECIFICATIONS
The range of nominal values of the transmission coefficients:
- filter 25 0.20 - 0.30
- filter 50 0.45 - 0.55
- filter 75 0.70 - 0.80
Tolerance limits of error in reproduction of transmission coefficients ± 0.05
Operating conditions:
- air temperature -10°C to +35°C
- relative humidity 0 - 93% at 25°C
Dimensions / Weight:
- frame
May be replaced with a frame measuring 150×135×140 mm
 150×135×48 mm / 2 kg
- filter 25; 50; 75; light-tight Ø135×18 mm / 0.5 kg
Life time 10 years
