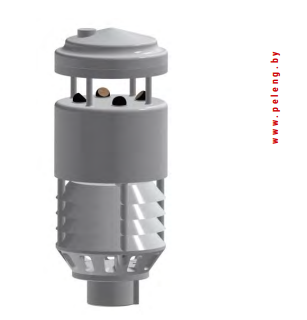

Multisensor WSM
Multisensor WSM
PURPOSE
  • Air temperature, relative humidity, atmospheric pressure, wind speed and direction, irradiance, precipitation type and amount measurement
APPLICATION
  • Meteorology
  • Agriculture
  • Power engineering
  • Scientific research
  • Air monitoring
  • Road services
ADVANTAGES
  • Standalone operation or as part of systems (monitoring, measuring)
  • Measured parameters selection option
  • Power consumption, including wind speed and direction measurement modules heating, precipitation 50 W max
  • Possibility to choose the product set (order code)
VERSIONS
  • Air temperature, relative humidity, and atmospheric pressure measurement module
  • Wind speed and direction measurement module
  • Atmospheric precipitation type/amount determination and irradiance measurement module
ADDITIONAL IMAGES

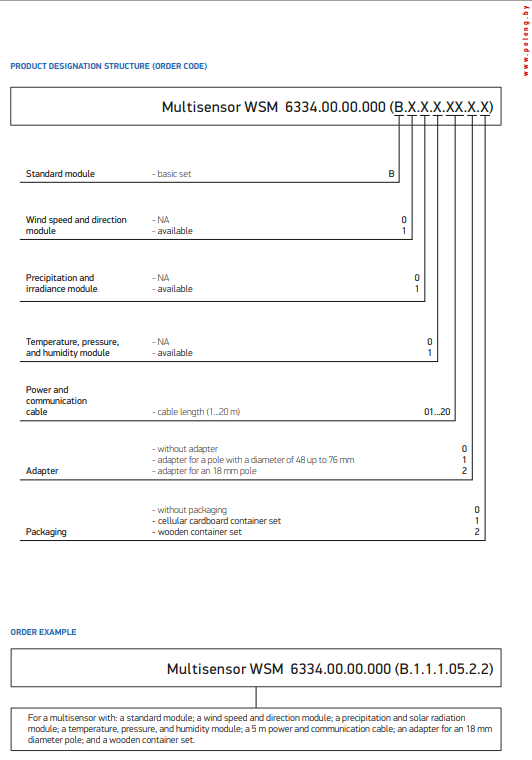

product designation structure

PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
Power supply voltage:
- DC mains 12 - 36 V
Output interface RS-485-2W
Mounting to a pole:
- adapter 1 Ø 48...76 mm
- adapter 2 Ø 18 mm
Life time 10 years
MEASURED PARAMETERS
Air pressure:
- measurement range 600 - 1100 gPa
- measurement accuracy ± 1 gPa (-60°C to 0°C)
± 0.5 gPa (0°C to +30°C)
± 1 gPa (+30°C to +65°C)
- discreteness 1 gPa
Air temperature:
- measurement range -60°C to +65°C
- measurement accuracy ± 0.3 °C
- discreteness 0.1 °C
Relative humidity:
- measurement range 2 - 98%
- measurement accuracy ± 3% (2 - 90%)
± 5% (90 - 98%)
- discreteness 1%
Wind speed:
- measurement method ultrasonic
- measurement range 0.3 - 55 m/s
- measurement accuracy ± 0.3 m/s (0.3 - 10 m/s)
± 3% (10 - 55 m/s)
- discreteness 0.1 m/s
Wind direction:
- measurement method ultrasonic
- measurement range 0° - 360°
- measurement accuracy ± 3°
- discreteness 1°
Type, intensity, and precipitation amount:
- measurement method Doppler using a radar sensor
- precipitation type liquid, solid
Precipitation intensity:
- indicating range 0 - 200 mm/h
- discreteness 0.01 mm/h
Precipitation amount:
- measured precipitation, min 0.1 mm
- absolute measurement error ± (0.1 + 0.05M) mm, where M is the measured precipitation amount
- discreteness ± 0.01 mm
Irradiance:
- wavelength range (at level 0.1) 380 - 1100 nm
- measurement range 0 - 2000 W/m²
- measurement accuracy ±10%
- discreteness 1 W/m²
