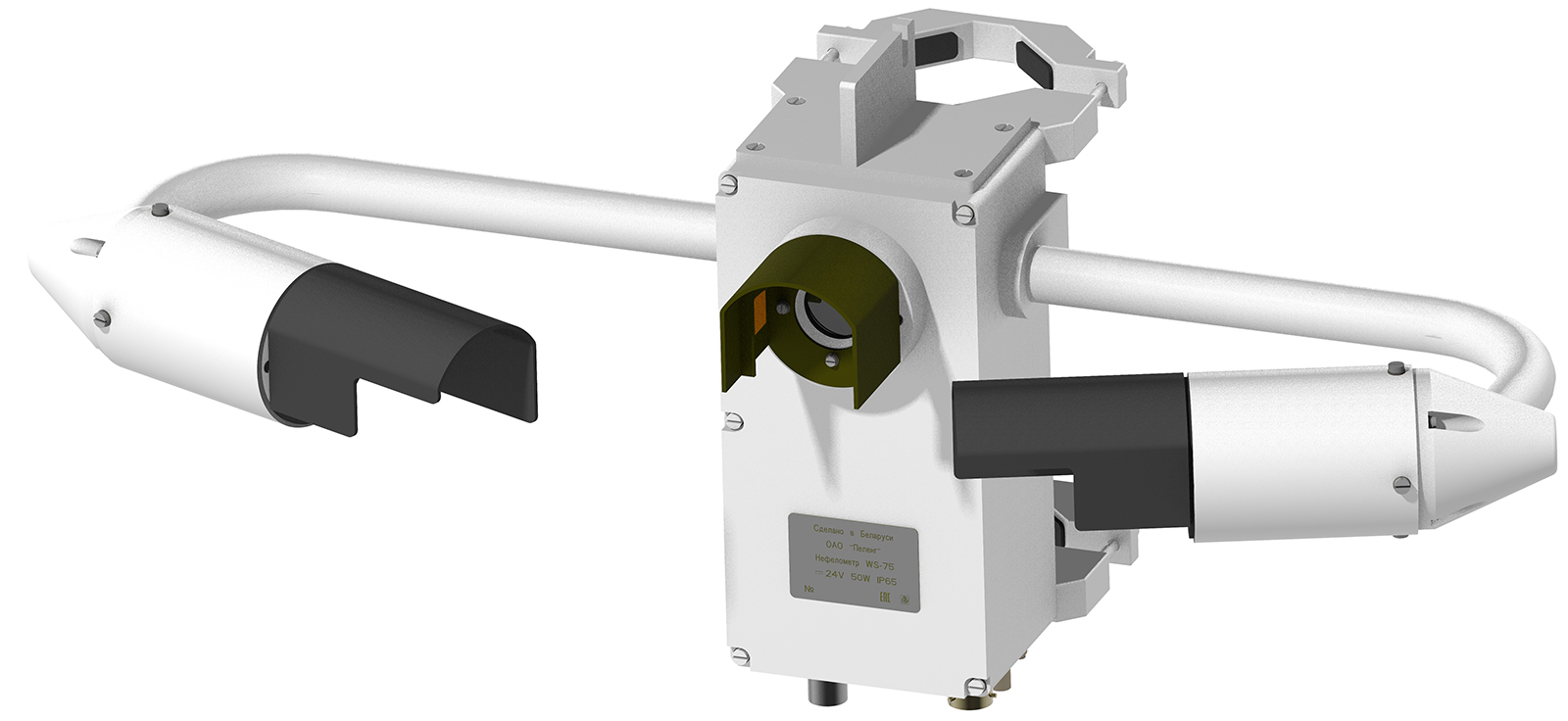

NEPHELOMETER WS-75
NEPHELOMETER WS-75
PURPOSE
  • Meteorological optical range determination
  • Determination of current weather phenomena according to WMO No. 306
  • Determination of intensity and amount of precipitation
APPLICATION
  • Meteorology
  • Airfields and helipads
  • Road and railway monitoring
  • Maritime segment
ADVANTAGES
  • Determination of 49 weather phenomena
  • Possibility to simulate sensor messages from other manufacturers with console customization
  • Heated protective glasses and housings
  • Compensation of protective glasses' contamination
  • Temperature compensation: stable readings in the temperature range from -60°C to +65°C
  • Offline software
  • Possibility to choose the product's set (order code)
EQUIPMENT CONFIGURATION
  • Nephelometer
OPTIONAL EQUIPMENT
  • Translator
  • Power supply unit BP-220-24
ADDITIONAL IMAGES

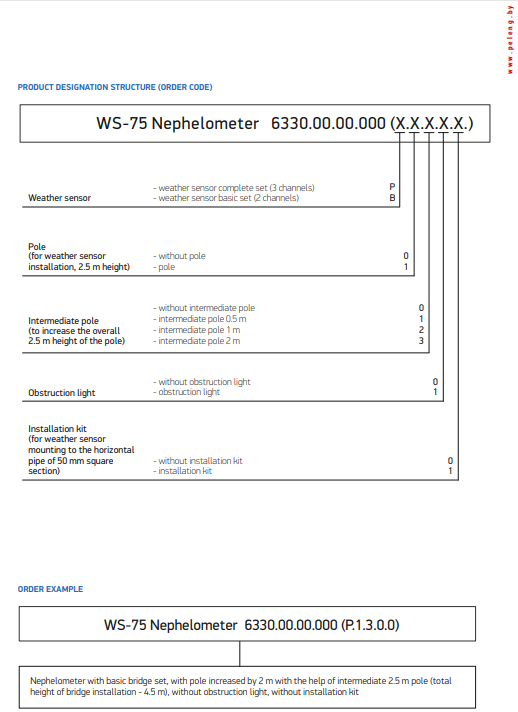

product designation structure

PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
MOR measurement range 10 - 50000 m
MOR measurement error ± 8% (from 10 to 600 m)
± 10% (more than 600 to 10000 m)
± 15% (more than 10000 to 50000 m)
Precipitation quantity measurement range (rain/snow) 0 - 999.9 mm
Precipitation intensity measurement range (rain/snow) 0 - 999.999 mm/h
Precipitation detection threshold (rain/snow) 0.1 mm/h
Operation mode automatic message or upon request
Message interval 15 - 60 s (adjustable)
Power supply voltage:
- DC mains 24 V
Power consumption including heating ≤ 50 W
Output interface RS-485-2W, V.23
Communication protocol ASCII
Operating conditions:
- air temperature -60°C to +65°C
- relative humidity 0 - 100%
- atmospheric pressure 60 - 110 kPa
Protection IP 66
Life time 10 years
SOFTWARE
