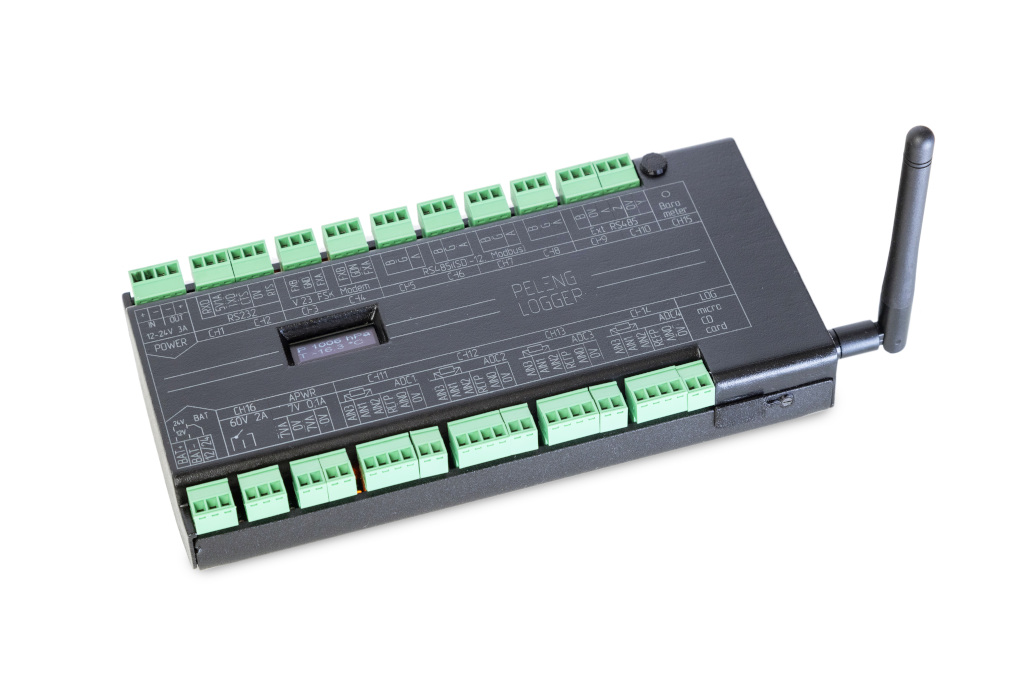

Logger
Logger
PURPOSE
  • Multifunctional measuring converter of analog electric signals
  • Digital signal concentrator with functions of acquisition, storage, processing and automatic retransmission of received data to a PC or local network
APPLICATION
  • Meteorology
  • Airfields and helipads
  • Hydrology
  • Agriculture
  • Road and railway monitoring
  • Industrial enterprises
  • Maritime segment
  • Energy and renewable energy sources
ADVANTAGES
  • Energy efficient
  • Compactness
  • Scalability
  • Configurability
  • Interface redundancy
  • DIN 35 mm mounting
  • Possibility to choose the product's set (order code)
VERSIONS
  • Version 1. Energy efficient:

    - without galvanic isolation

    - power consumption 50-100 mW

  • Version 2. Basic:

    - galvanic isolation

    - power consumption 0.5 - 1 W

  • Version 3. Performance:

    - galvanic isolation

    - computing module

    - power consumption 5 - 8 W
ADDITIONAL IMAGES

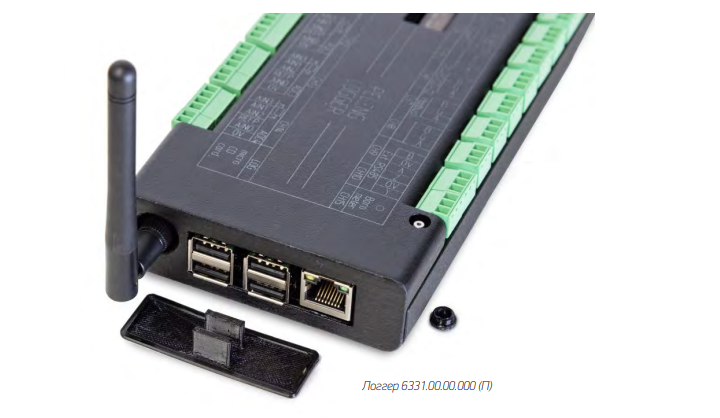

Logger

Logger
product designation structure

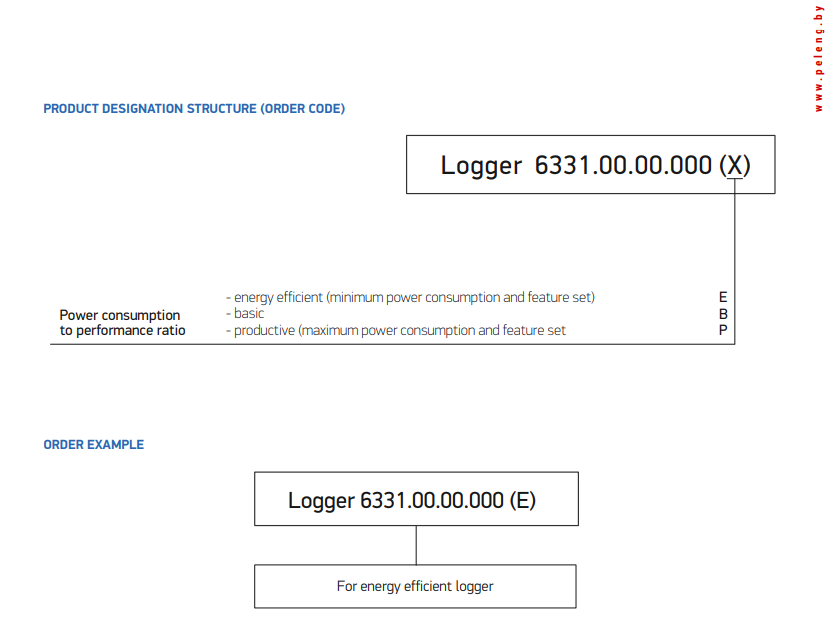

PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
Interfaces:
- RS-232 2 channels
- RS-485-2W 6 channels
- V.23 2 channels
Analog-to-digital converter (ADC) 24-bit 6 channels with combined sensors' connection
Measurement range:
- electrical resistance 78.32 to 121.32 ohm
- electrical voltage -2 to 2 V
- direct current 4 to 20 mA
Built-in atmospheric pressure meter:
- measurement range 300 - 1100 gPa
- measurement error ± 0.5 gPa
Switching channels:
- number of channels (relays) 2 channels
- type of relay solid state relay 60V /4A
Wired data transmission (version 3) LAN 100 Mbit
Wireless data transmission Wi-Fi IEEE 802.11
Network protocols FTP, TCP/IP, HTTP
Real time clock (RTC) +
Data logging micro SD (up to 64 GB)
Power supply voltage:
- DC mains 12 - 24 V
Operating conditions:
- air temperature -40°C to +85°C
- relative air humidity 0 - 80%
Protection IP 20
Dimensions (L×W×H) 200×94×35 mm
Weight 0.5 kg
Mounting DIN 35 mm
