Система метеорологическая измерительно-информационная С-01 (мобильная, малогабаритный вариант исполнения)

PURPOSE
Measurement, collection and processing of meteorological
APPLICATION
Meteorology Road and railway monitoring Industrial enterprises Energy and renewable energy sources Construction
TASKS
Issue of regime summaries Formation of regular and "storm” reports Sending reports to information centers Operation in automated or automatic modes Maintaining an archive of meteorological information (optional)
ADVANTAGES
Mobility High autonomy Flexible scalable solution System deployment and adjustment: 15 minutes (1 person) Reporting the current status via WEB-technologies
MEASURED PARAMETERS
Wind speed and direction Air temperature Relative humidity Atmospheric pressure

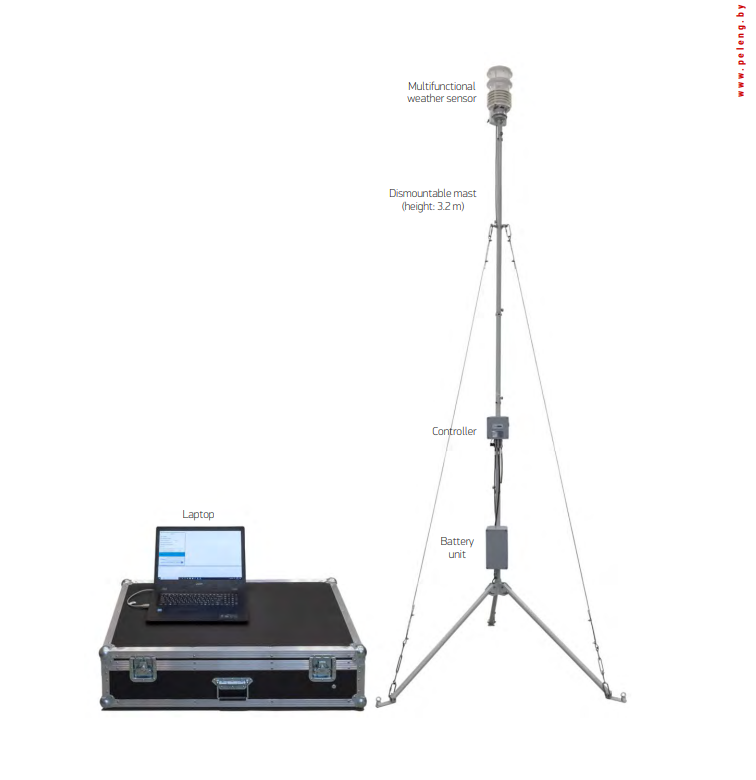

EQUIPMENT CONFIGURATION
Meteorological sensors: Multifunctional weather senso Equipment and sets: Controller Mast Battery unit Cable set Shipping case Optional equipment: Laptop
ADDITIONAL IMAGES

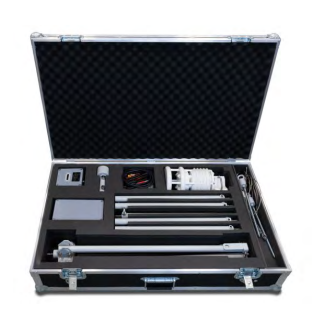

Small size mobile meteorological system S-01 in a shipping case
MAIN SPECIFICATIONS
Off-line operation time	≥ 8 hours (≥ 3.5 hours @ - 25°С)
Power supply voltage:
- DC mains	9 - 36 V
Data transmission interface	RS-485-2W, Ethernet
Operating conditions:
- air temperature operating from batteries	-25°С to +50°С
- air temperature operating from mains sources	-60°С to +65°С
Protection	IP 66
Dismountable mast height	3.2 m
Dismountable mast weight	8 kg
Battery unit weight	4.5 kg
Shipping case dimensions (L×W×H)	990×620×220 mm
System overall weight in shipping case	30 kg
Life time	10 years
