AMIS-PELENG SF-09 MOBILE AUTOMATED WEATHER OBSERVING SYSTEM FOR AIRFIELDS AND HELIPADS
AMIS-PELENG SF-09 MOBILE AUTOMATED WEATHER OBSERVING SYSTEM FOR AIRFIELDS AND HELIPADS
PURPOSE
  • Meteorological information support for mobile control points and aviation flight situation response centers
APPLICATION
  • Temporary aerodromes, helipads, unequipped landing pads
TASKS
  • Measurement of the main meteorological parameters
  • Calculation and manual entry of the meteorological parameters that are not measured or not determined automatically
  • Automatic generation of weather reports in METAR (SPECI), ATIS, WAREP and KN-01 SYNOP codes and their transmission of reports in communication lines
  • Registration, archiving and displaying of meteorological information
ADVANTAGES
  • Mobility The equipment is located in a single module mounted on a mobile chassis
  • The time of deployment of the system's measurement module is max 30 min (for two persons)
  • An autonomous uninterruptible electrical power supply system ensures continuous operation of equipment, lighting and main utility systems
  • Comfortable space for work and leisure: autonomous heating, ventilation, air conditioning and purification systems; two beds; a refrigerator; a microwave; a sink with heated water supply; storage spaces for personal items
  • Flexibility of system construction the customer can choose the delivery set and types of equipment
MEASURED PARAMETERS
  • Wind speed and direction
  • Air temperature
  • Relative humidity
  • Atmospheric pressure
  • Meteorological optical range (MOR)
  • Cloud-base hight
EQUIPMENT CONFIGURATION
Equipment configuration
* Each station is constructed according to the modular concept and can be individually configured based on the Сustomer's requirements
Meteorological sensors:
  • PELENG SF-03/SF-17 cup anemometer and wind vane
  • PELENG SL-03 nephelometer
  • SD-02-2006 ceilometer
  • Air temperature and relative humidity sensor
  • Barometer

Equipment and sets:
  • Receiving & transmitting unit
  • Battery unit
  • Telescopic pneumatic mast
  • Obstruction light
  • Personal computer
  • Installation kit
  • Cable set
  • Set of spare parts
  • Shipping cases

Optional equipment:
  • Communication set
  • Autonomous power supply kit
  • Lightning rod set
  • Forecaster’s workstation
CHASSIS
  • KAMAZ-43118
  • KAMAZ-43118
  • MAZ-631708
  • MZKT-622733

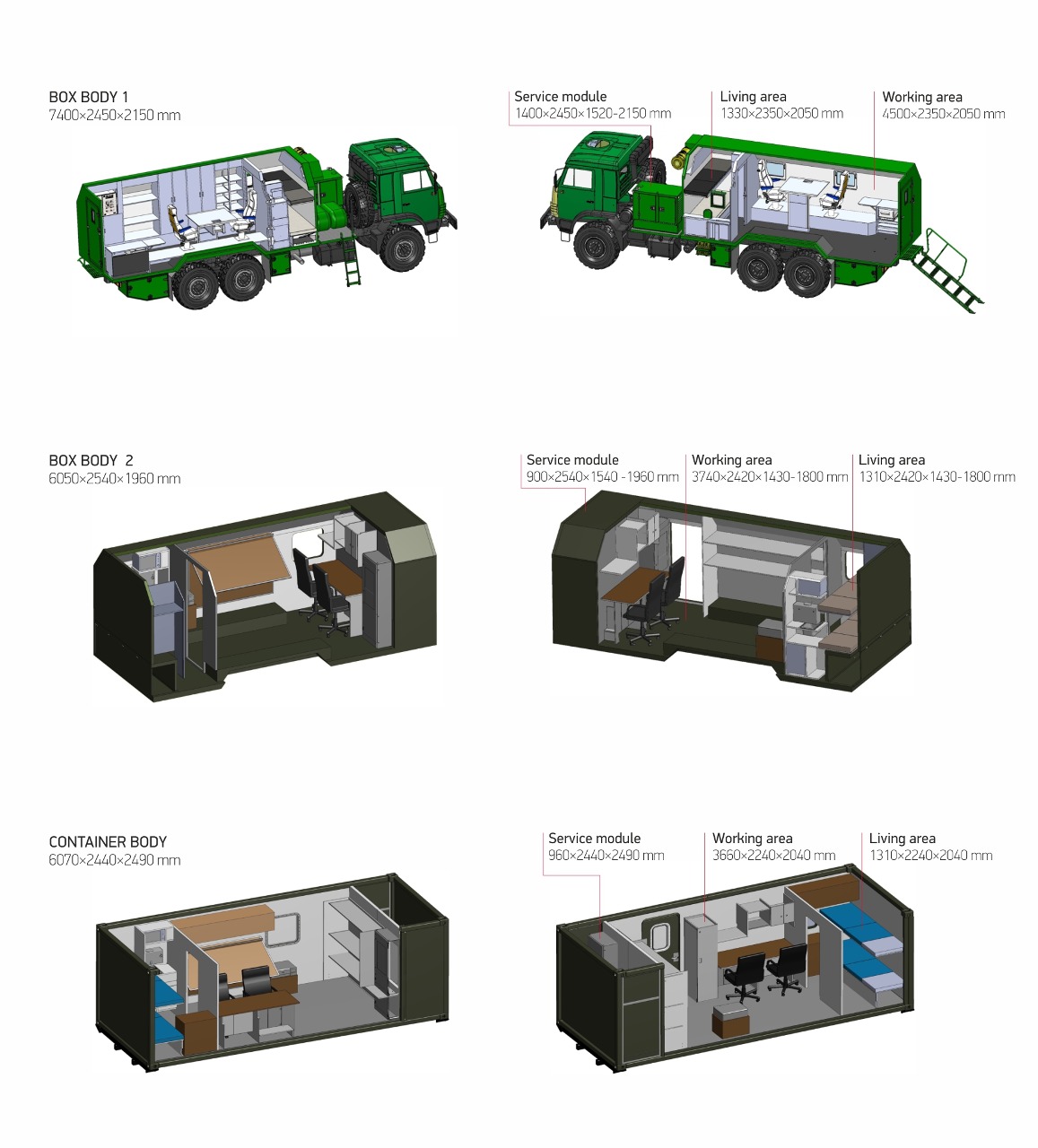

AMIS-PELENG SF-09 MOBILE SYSTEM MODULE CONFIGURATIONS
  • Box body 1
  • Box body 2
  • Container body
MAIN SPECIFICATIONS
Power supply voltage:
- DC mains 12 - 24 V
- AC mains 230 V 50 Hz
Power consumption ≤ 1 kW
Off-line operation time not less 8 hours
Output interface RS-485-2W, Ethernet
Operating conditions:
- operating from batteries -25°С to +50°С
- operating from mains sources -55°С to +60°С
Telescopic mast height 2 - 9.5 m
