AMIS-PELENG SF-09 AUTOMATED WEATHER OBSERVING SYSTEM FOR HELIPADS (marine version)
AMIS-PELENG SF-09 AUTOMATED WEATHER OBSERVING SYSTEM FOR HELIPADS (marine version)
PURPOSE
  • Automatic continuous measurement of the main meteorological values required to ensure takeoffs and landings of aircraft
APPLICATION
  • Aircraft takeoffs and landings support on marine stationary platforms, floating drilling rigs or marine vessels
TASKS
  • Measurement of the main meteorological parameters
  • Calculation and manual entry of the meteorological parameters that are not measured or not determined automatically
  • Automatic generation of weather reports in METAR (SPECI), MET REPORT (SPECIAL), ATIS, WAREP and KN-01 SYNOP codes and their transmission of reports in communication lines
  • Keeping the AV-6 weather log and the system operation events log
  • Registration, archiving and displaying of meteorological information
ADVANTAGES
  • Each system is formed according to the modular principle and has an individual configuration, taking into account the Customer's requirements
  • Flexible integration with external systems
  • Possibility of on-site verification
MEASURED PARAMETERS
  • Wind speed and direction
  • Air temperature
  • Relative humidity
  • Atmospheric pressure
  • Meteorological optical range (MOR)
  • Cloud-base hight
  • Water temperature
  • Wave parameters
INTERFACING WITH INFORMATION DATA TRANSMISSION SYSTEMS
Interfacing with vessel information data transmission systems via NMEA 0183 protocol
UniMAS Software and Hardware Complex
MITRA Software and Hardware Complex
Alpha ATC System
AMetISt ATIS/VOLMET
MSC MeteoTelex
AIS MeteoServer
Topaz ATM Automated System
Popugai 2 AVCG
ATIS Eleron
Galactica ATC System

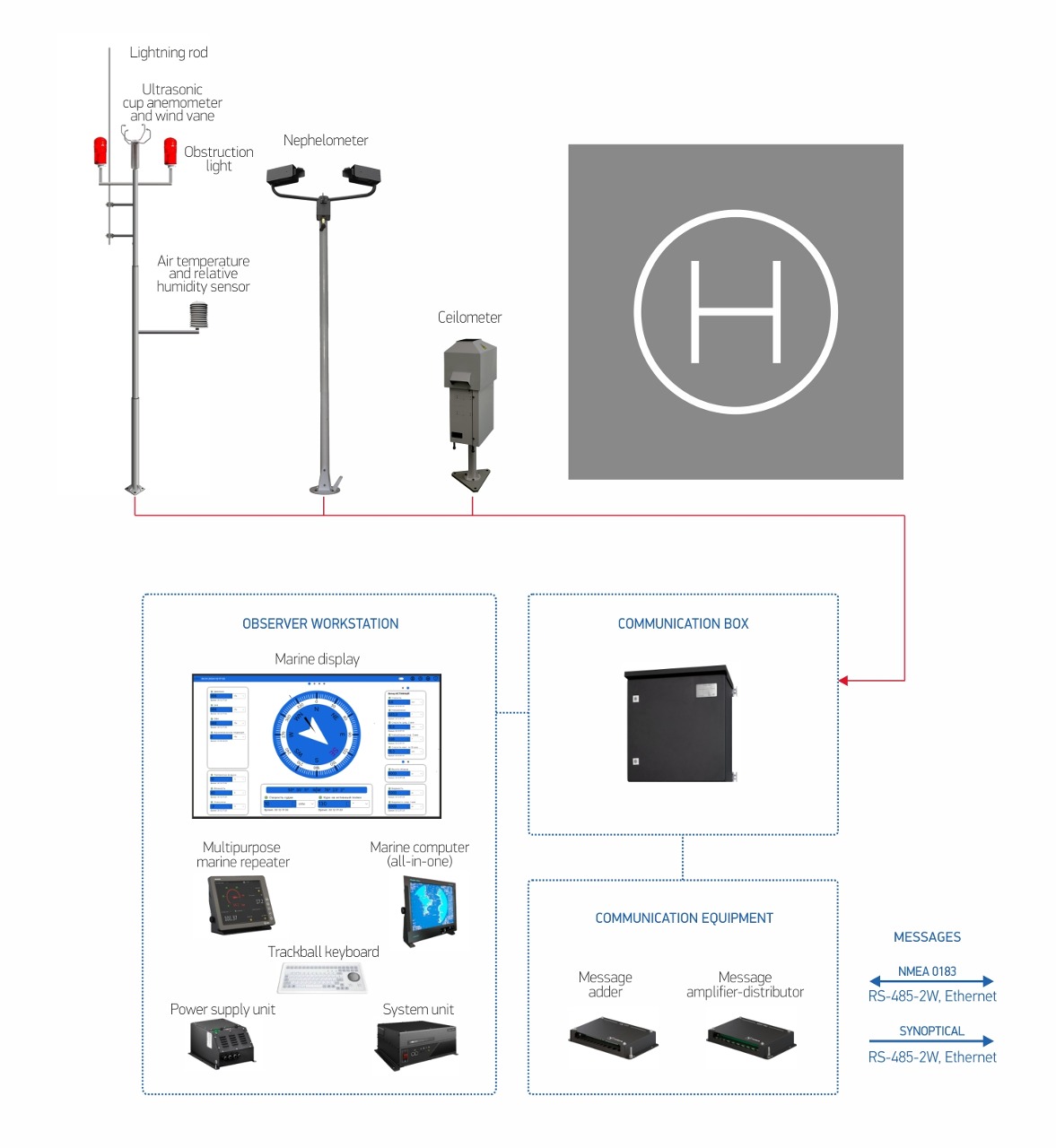

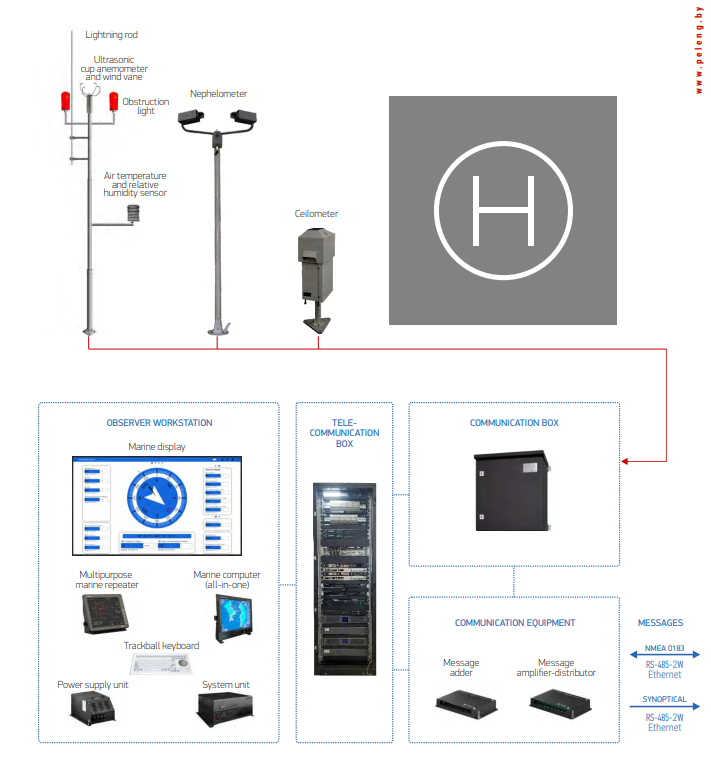

EQUIPMENT CONFIGURATION
Equipment configuration
* Each station is constructed according to the modular concept and can be individually configured based on the Сustomer's requirements
Meteorological sensors:
  • PELENG SF-03/SF-17 cup anemometer and wind vane
  • PELENG SL-03 nephelometer
  • SD-02-2006 ceilometer
  • Air temperature and relative humidity sensor
  • Barometer

Equipment and sets:
  • Communication box
  • System unit
  • Trackball keyboard
  • Marine display
  • Marine computer (all-in-one)
  • Multipurpose marine repeater
  • Message adder
  • Message amplifier-distributor
  • Installation kit
  • Set of spare parts
  • Power supply unit
MAIN SPECIFICATIONS
Power supply voltage
- AC mains 230 V 50 Hz
Rack power consumption ≤ 1 kW
Uninterruptible power supply operating time min 30 minutes
Output interface RS-485-2W, Ethernet
Life time 10 years
Outdoor device's operating conditions:
- air temperature -60°С to +65°С
- relative air humidity 0 - 100%
- atmospheric pressure 60 -110 kPa
- wind speed 0 - 55 m/s
Indoor device's operating conditions:
- air temperature о+5°С to +40°С
- relative air humidity 0 - 80%
