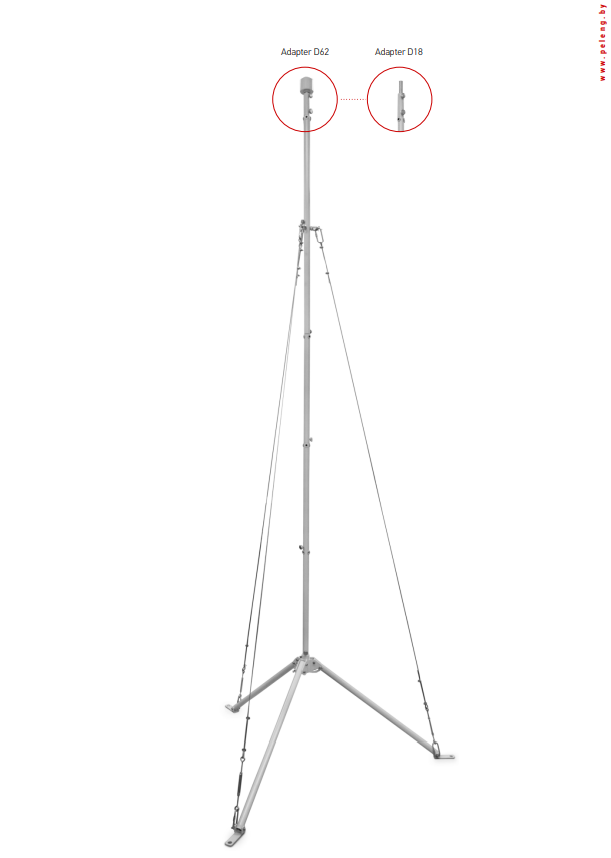

PORTABLE METEOROLOGICAL MAST

PURPOSE
The portable meteorological mast is designed for installation of the meteorological measuring equipment used as a part of portable meteorological stations
ADVANTAGES
The mast is delivered to the deployment site in a compact shipping case Mast installation time: 10 min.
EQUIPMENT CONFIGURATION
Mast Cable set Sensor holder (adapter D62 and D18) Open-end wrench 13x17 (2 pcs.) Shipping case
ADDITIONAL IMAGES

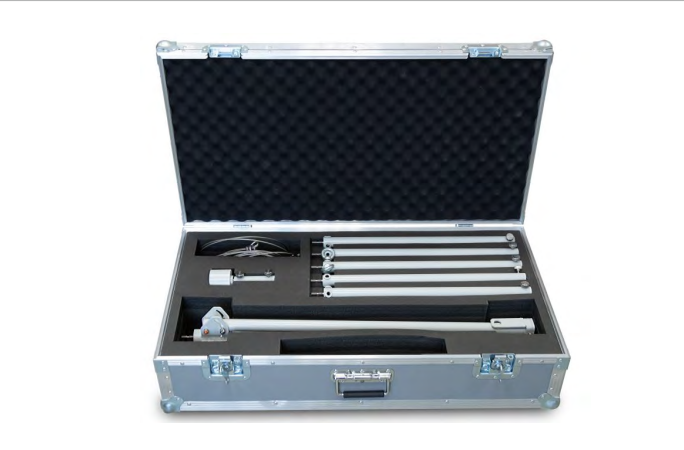

Mast type in shipping case
MAIN SPECIFICATIONS
Maximum mast height	3.2 m
Distributed load capacity	20 kg
Sensor holder load	5 kg
Max support diameter	1.42 m
Mast tube diameter	Ø 28 mm
Connection size of the sensor holder:
- adapter D62	Ø 62 mm
- adapter D18	Ø 18 mm
Operating conditions:
- air temperature	-60°C to +65°C
- relative air humidity	0 - 100%
- atmospheric pressure	60 - 110 kPa
- wind speed	0 - 35 m/s
Mast weight	6.5 kg
Shipping case dimensions (L×W×H)	945×515×243 mm
Shipping cases weight with mast, cable set, installation kit (gross / net)	20 / 8 kg
Life time	10 years
