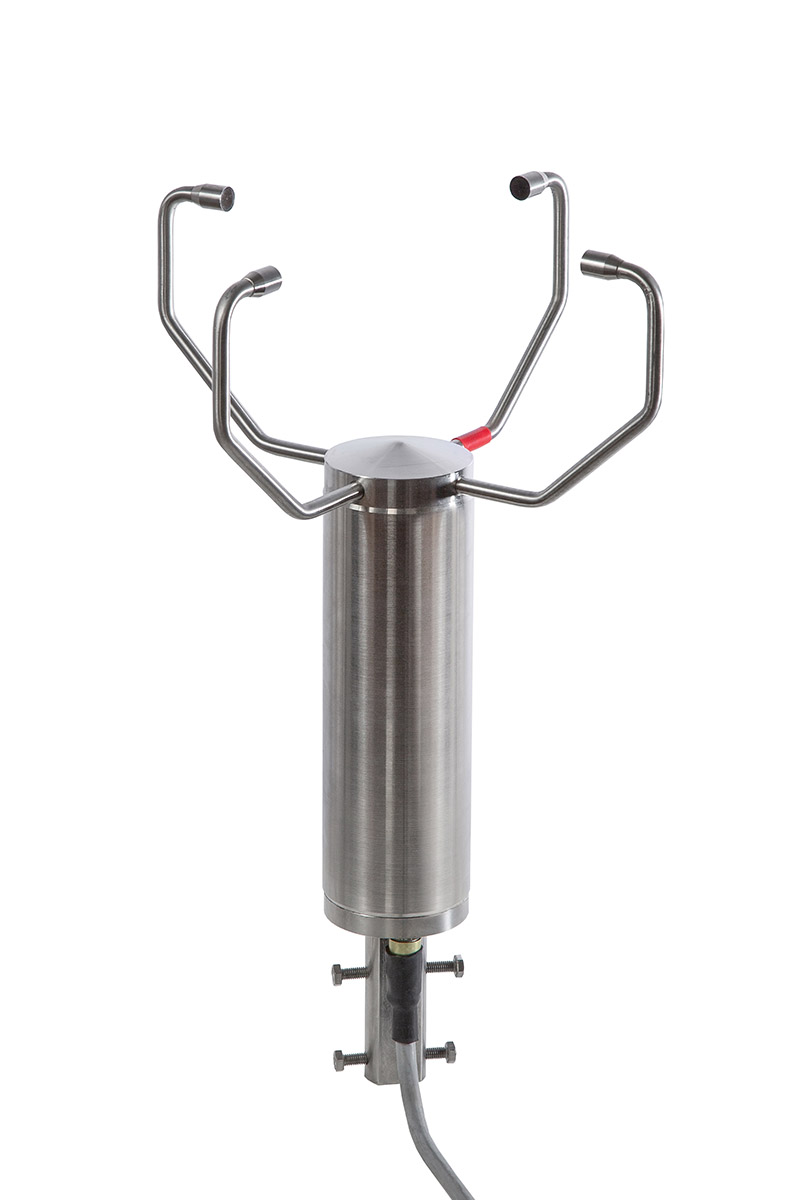

PELENG SF-17 Ultrasonic Cup Anemometer and Wind Vane

PURPOSE
Wind direction and speed measurement. Operating principle: measuring the ultrasonic signal transit time between pairs of transducers
APPLICATION
Meteorology Airfields and helipads Road and railway monitoring Industrial enterprises Maritime segment Energy and renewable energy sources Construction
ADVANTAGES
Used autonomously or as a part of meteorological measurement and information systems Possibility to simulate sensor messages from other manufacturers with console customization Offline software Resistant to sound pressure Certified by the Russian Maritime Register of Shipping as part of the AMIS-PELENG SF-09 system
EQUIPMENT CONFIGURATION
Sensor Installation kit
OPTIONAL EQUIPMENT
Translator Power supply unit BP-220-24
ADDITIONAL IMAGES
PRODUCT DESIGNATION STRUCTURE (ORDER CODE)
MAIN SPECIFICATIONS
Wind speed measurement:
- measurement range	0.3 - 55 m/s
- measurement error	± 0.3 m/s (0.3 - 10 m/s) ± 3% (more than 10 to 55 m/s)
Wind direction measurement:
- measurement range	0 - 360°
- measurement error	± 3°
Operation mode	automatic message or upon request
Message interval	3 s
Power supply voltage:
- DC mains	24 V
Power consumption including heating	≤ 35 W
Output interface	RS-485-2W, V.23
Communication protocol	ASCII, NMEA 0183
Operating conditions:
- air temperature	-60°C to +65°C
- relative humidity	0 - 100%
- atmospheric pressure	60 - 110 kPa
- sound pressure exposure	up to 130 dB
Protection	IP 66
Dimensions (L×W×H)	285×285×430 mm
Weight	2.7 kg
Life time	10 years
CERTIFICATION
№ 17727 issued by the State Committee for Standardization of the Republic of Belarus
№ 95552-25 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)

SOFTWARE
Peleng Meteo
