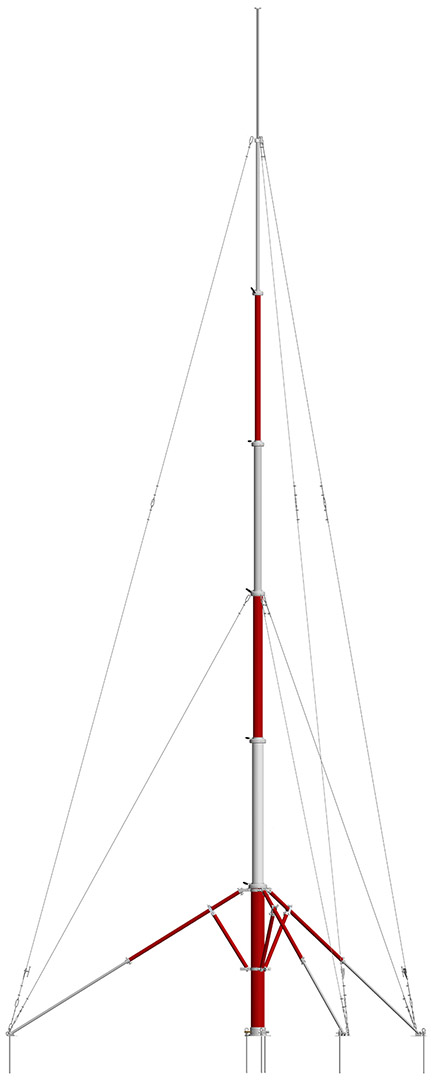

Telescopic Pneumatic Mast
Telescopic Pneumatic Meteorological Mast
PURPOSE
  • The telescopic mast is designed for installation of the meteorological measuring equipment used as a part of portable meteorological stations for the needs of synoptic and meteorological networks
ADVANTAGES
  • The telescopic mast is driven into working position by a pneumatic compressor or hand pump
  • Mast installation time: 15 min
  • Thanks to the use of composite materials and aluminum, low weight and high corrosion resistance of the mast are achieved
EQUIPMENT CONFIGURATION
  • Mast
  • Cable set
  • Installation kit
  • Shipping cases (2 pcs.)
OPTIONAL EQUIPMENT
  • Lightning rod set
ADDITIONAL IMAGES

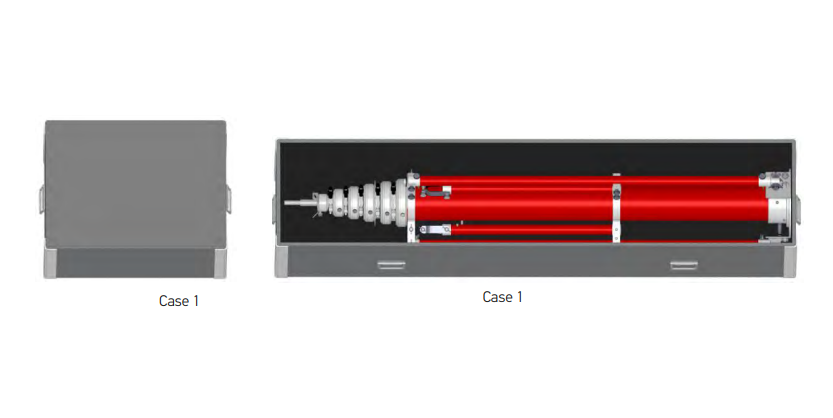

Mast type in shipping case

Mast type in shipping case
MAIN SPECIFICATIONS
Mast height 2 - 9.5 m
Distributed load capacity 60 kg
Operating conditions:
- air temperature -60°C to +65°C
- relative air humidity 0 - 100%
- atmospheric pressure 60 - 110 kPa
- wind speed 0 - 60 m/s
Mast weight 50 kg
Shipping cases weight with mast, cable set, installation kit (gross / net):
- case 1 60 / 50 kg
- case 2 21 / 14 kg
Shipping cases dimensions (L×W×H):
- case 1 2040×440×420 mm
- case 2 720×520×400 mm
Life time 10 years
SOFTWARE
Для получения более подробной информации, пожалуйста, обратитесь в отдел маркетинга и продаж.
APPLICATION
Для получения более подробной информации, пожалуйста, обратитесь в отдел маркетинга и продаж.
