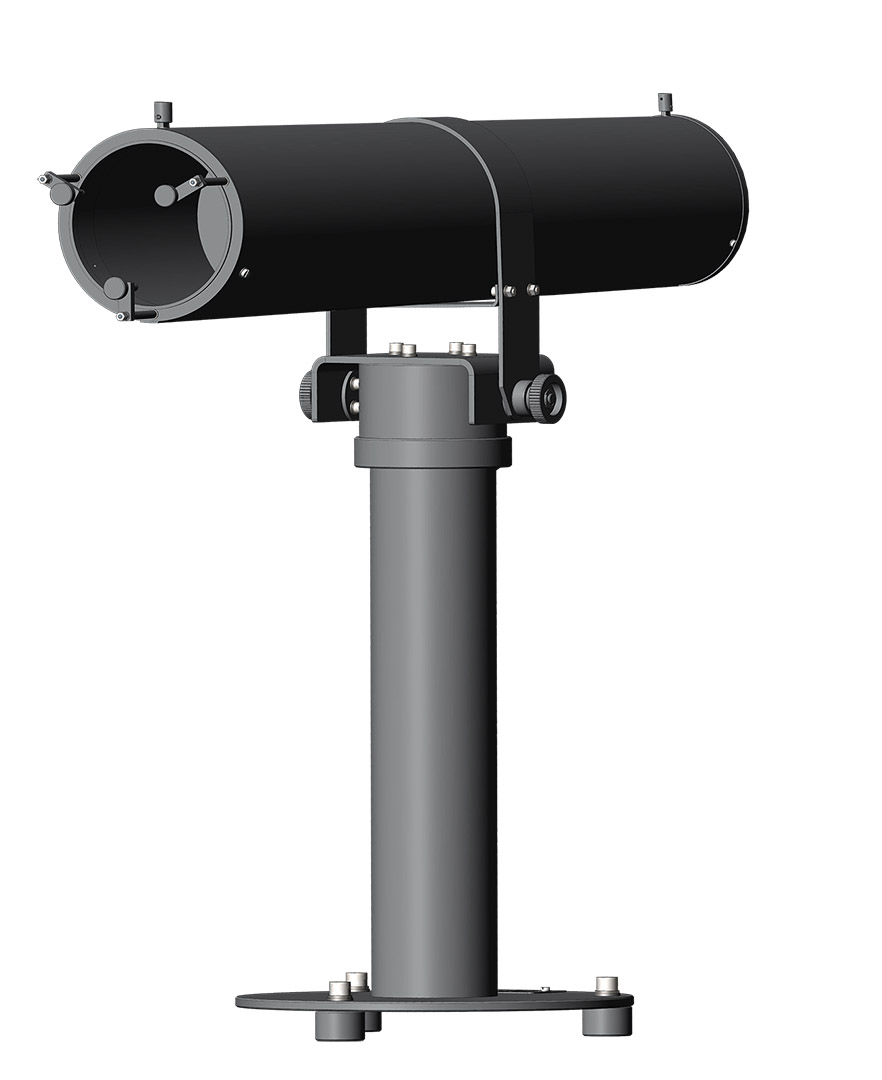

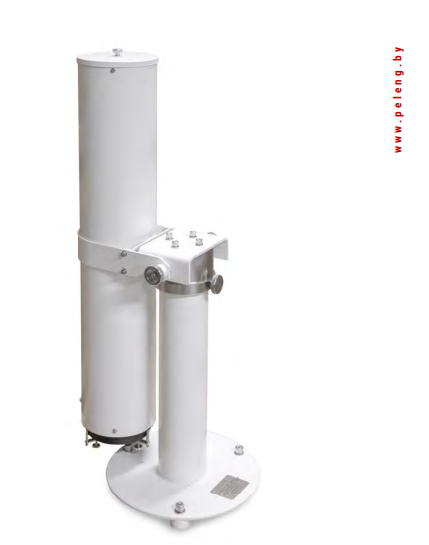

PO-11 Installation for Verification of Pyranometer and Net Radiometer
|
PURPOSE
|
|
|
|
|
EQUIPMENT CONFIGURATION
|
|
|
|
|
MAIN SPECIFICATIONS
|
|
|
Angle of rotation of the receiving part:
|
|
| - horizontal axis | 0 - 360° |
| - vertical axis | 0 - 90° |
| The error of installation of the receiving part on the Sun | 3' |
| Working corner field | 10° |
|
Operating conditions:
|
|
| - air temperature | -60°C to +80°C |
| - relative humidity | 0 - 100% @ 25°C |
| Dimensions (L×W×H) | 659×240×566 mm |
| Weight (without adapter rings and protective casing of the net radiometer) | 12 kg |
| Life time | 10 years |
