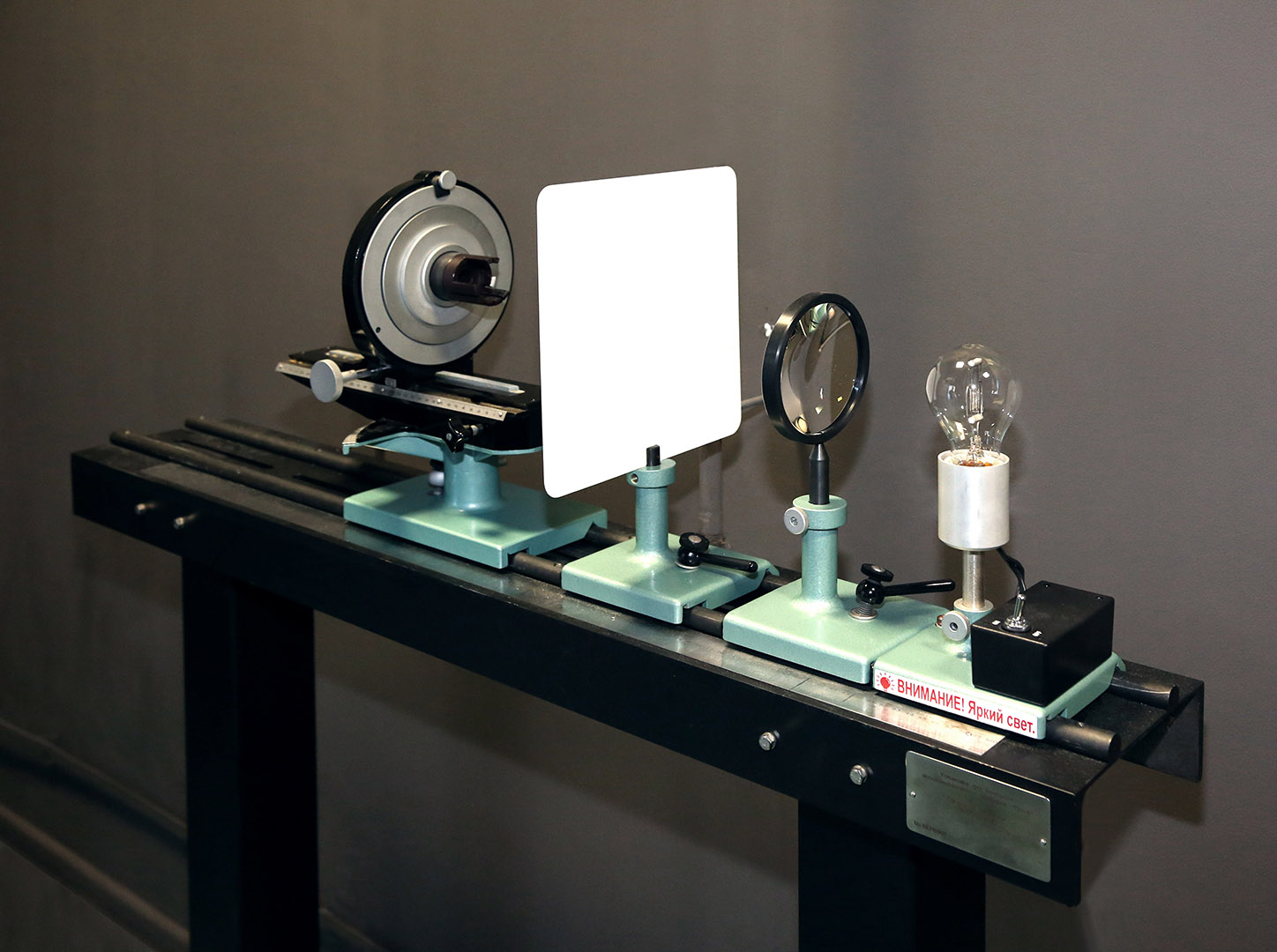

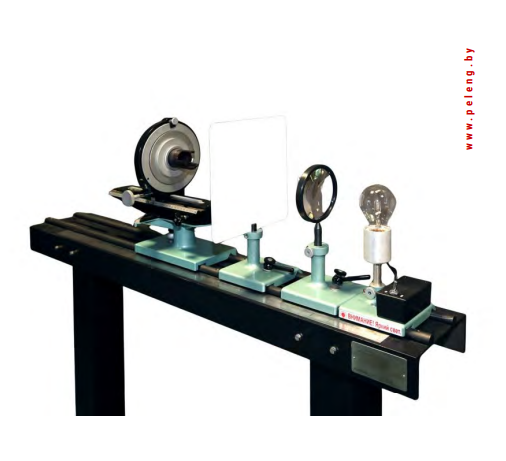

PO-04 Installation for Control of Actinometric Devices
PURPOSE
- Installation for control of actinometric devices PO-4 is designed for measuring the characteristics and verification of actinometric devices (pyranometers, actinometers, balance meters) in laboratory conditions. The design and equipment of the installation make it possible to center and ensure the stability of the centering of the optical axis of the controlled devices with the optical axis of the measuring units included in the installation kit in order to conduct measurements using methods developed on the basis of geometric optics
COMPLETE SET
- Bench assembly
- Shading screen
- Adjustment screen
- Lens
- Casing
- Device for installing a balance meter
- Illuminator
- Sleeve
- Holder
- Slide
- Rider (5 pcs.)
- Voltmeter
- Stabilizer
- Lamp E27-500 W (2 pcs.)
SPECIFICATIONS
|
Bench length |
1 200 mm |
|
Bench width |
500 mm |
|
Installation scale length |
1 000 mm |
|
Scale division |
1 mm |
|
Power supply voltage |
230 ± 23 V (50 Hz) |
|
Operation environment: - ambient temperature - relative air humidity |
+15°С to +25°С 0 - 80 % (25°С) |
|
Life time |
8 years |
|
Weight |
100 kg |
