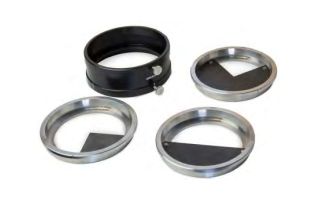

PELENG SF-05 Set of Filters
PURPOSE
- The PELENG SF-05 set of filters is designed for checking metrological characteristics of the PELENG SF-01 meteorological optical range meters during calibration. The filters in the set attenuate the luminous flux in the device working area, thus simulating a certain value of the meteorological optical range

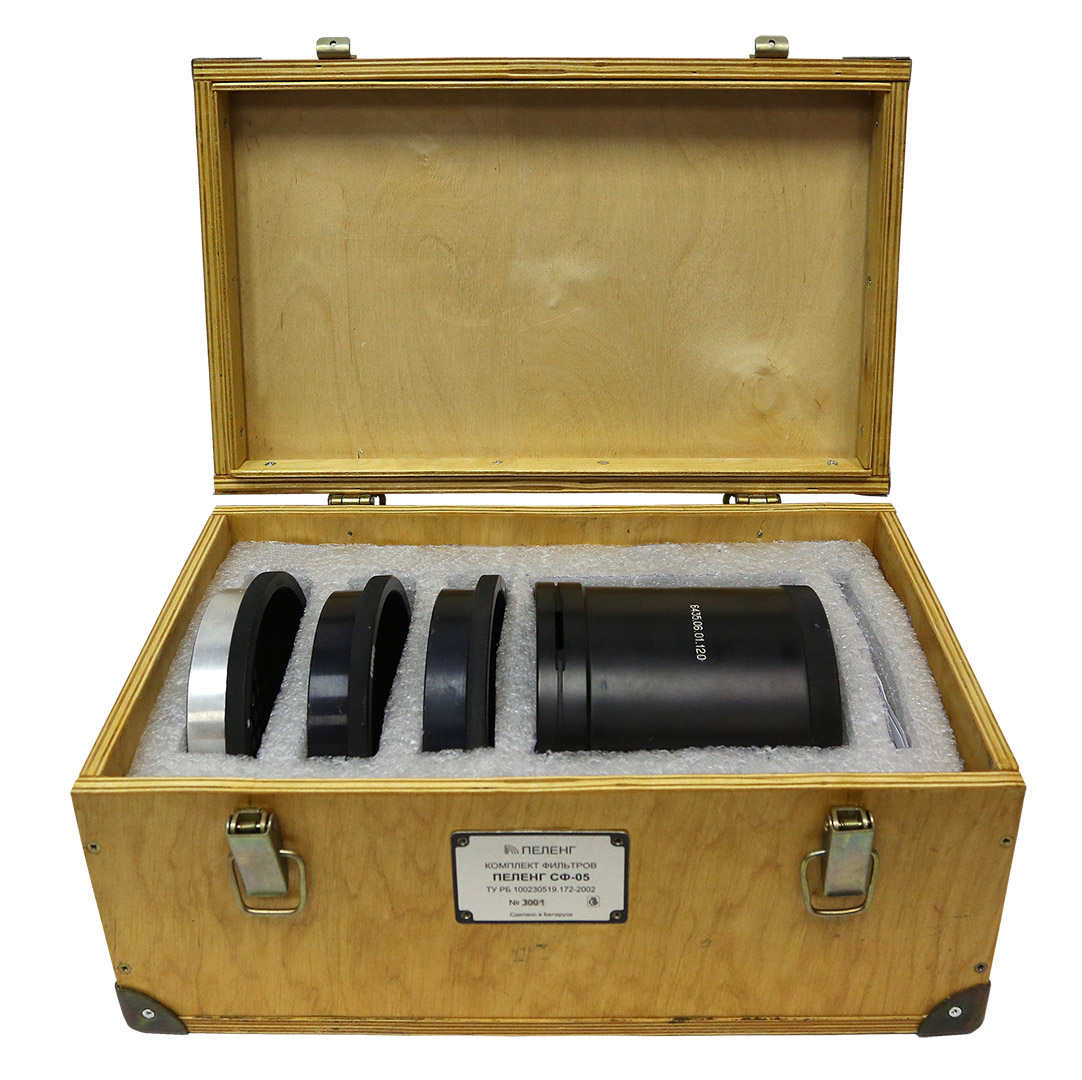

COMPLETE SET
- Set of filters (3 pcs.)
- Mount
- Case
SPECIFICATIONS
|
The range of nominal values of the transmission coefficients of filters: - filter 1 - filter 2 - filter 3 |
0.08 - 0.11 0.47 - 0.54 0.87 - 0.94 |
|
Absolute error of the transmission coefficients of the pulse repetition filters in intervals |
± 0.005 |
|
Operation environment: - ambient temperature - relative air humidity |
-10°С to +35°С 0 - 80 % (25°С) |
|
Life time |
12 years |
|
Overall dimensions (L × W × H): - filter - case |
140×140×30 mm 320×260×260 mm |
|
Weight of the filter set in the case |
3.5 kg |
