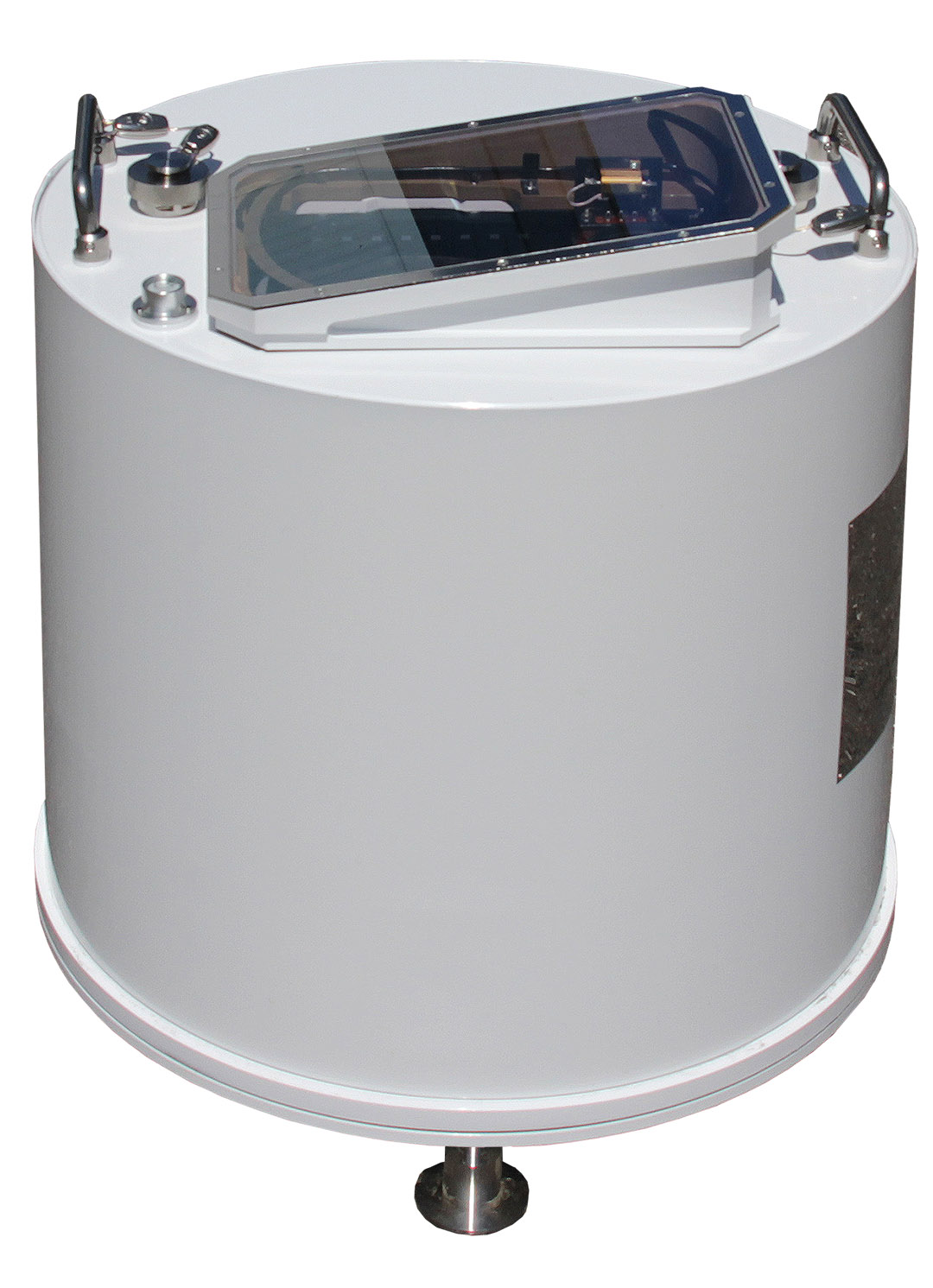

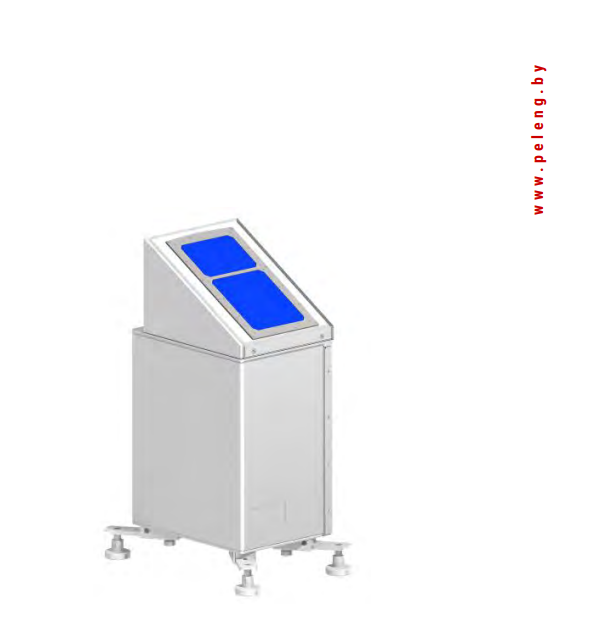

SD-02-2006M Portable Ceilometer
SD-02-2006M Portable Ceilometer
PURPOSE
  • Cloud-base height measurement. Operation principle is based on atmospheric backscatter measurement
APPLICATION
  • Meteorology
  • Airfields and helipads
  • Maritime segment
ADVANTAGES
  • Up to three cloud layers are determined
  • Determination of vertical visibility
  • Calculation of sky coverage by clouds (in point and octant formats)
  • Possibility to simulate sensor messages from other manufacturers with console customization
  • Built-in automatic self-test system
  • Hydrophobic coat
  • Protection of communication lines from thunderstorms
  • Offline software
EQUIPMENT CONFIGURATION
  • Optoelectronic unit
  • Installation kit
  • Set of spare parts, tools and accessories
OPTIONAL EQUIPMENT
  • Translator
  • Power supply unit BP-220-24
MAIN SPECIFICATIONS
Measurement range 5 - 8000 m
Measurement error ± 5 m (from 5 to 100 m)
± 10% (more than 100 to 2000 m)
± 5% (more than 2000 to 8000 m)
Operation mode automatic message or upon request
Message interval 15 s
Power supply voltage:
- DC mains 24 V
Power consumption including heating ≤ 50 W
Output interface RS-485-2W
Communication protocol ASCII
Operating conditions:
- air temperature -60°C to +65°C
- relative humidity 0 - 100%
- atmospheric pressure 60 - 110 kPa
Protection IP 66
Dimensions (L×W×H) 450×450×560 mm
Weight 26 kg
Life time 10 years
SOFTWARE
INGO
Peleng Meteo CL
APPLICATION
