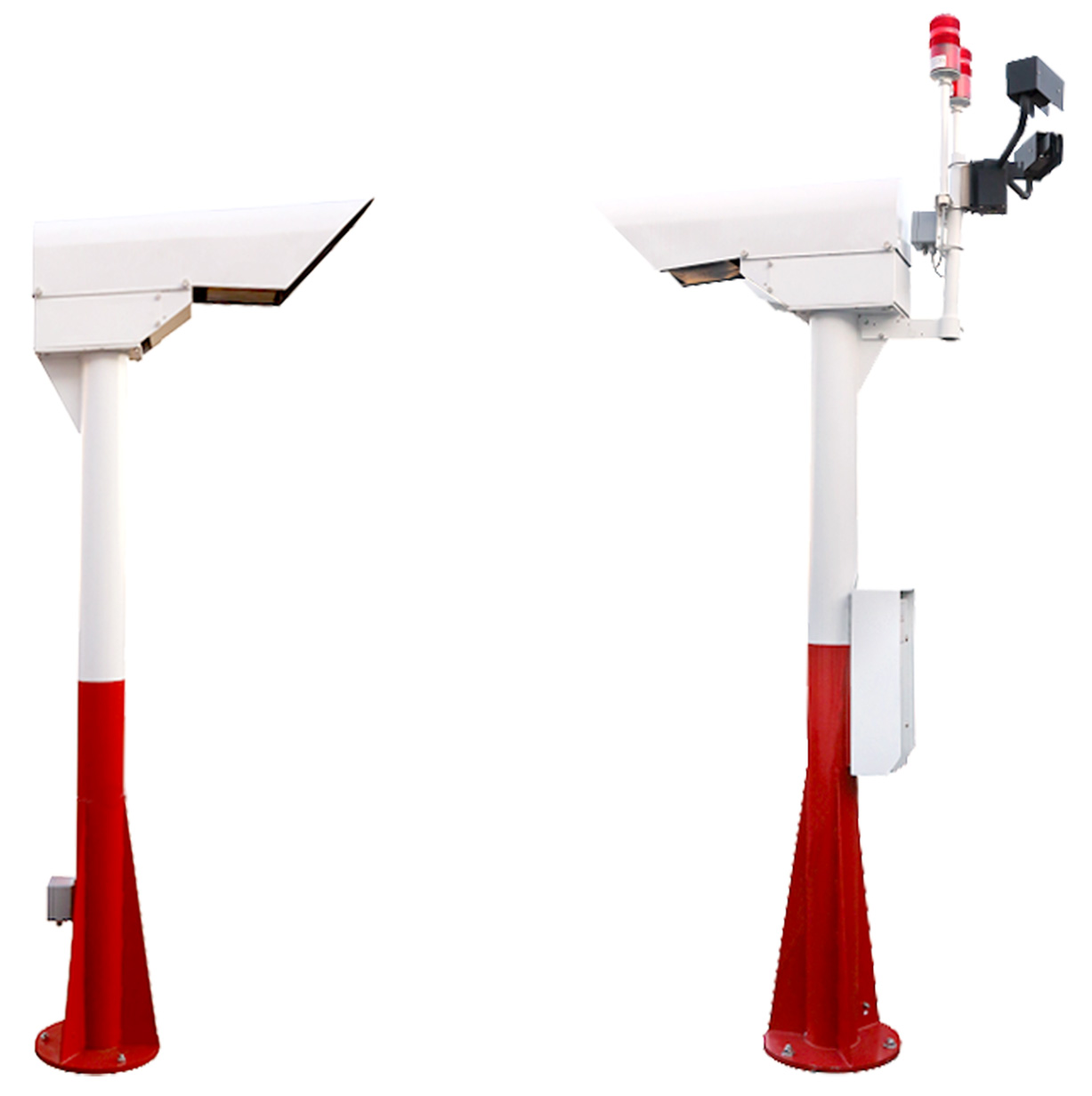

AT-21 Transmissometer

PURPOSE
Meteorological optical range measurement. The principle of operation is to measure the transmittance of the atmospheric layer between the transmitter and the receiver Measurement of radiation intensity scattered in the atmosphere
APPLICATION
Meteorology Airfields
ADVANTAGES
The measurements are performed during daytime and at night independently and as a part of weather station, including automatic airport weather stations Possibility to simulate sensor messages from other manufacturers with console customization Contamination of the protective glass of the instrument's optical units is taken into account Automatic adjustment On-site self-test Offline software
EQUIPMENT CONFIGURATION
PELENG SF-01 transmissometer PELENG SL-03 nephelometer Electronic unit Installation kit Set of spare parts, tools and accessories
OPTIONAL EQUIPMENT
PELENG SL-02 background luminance sensor Translator Obstruction lights
MAIN SPECIFICATIONS
Baseline distances	30 / 50 / 75 / 100 m
Transmission coefficient measurement using SF-01 PELENG:
- measurement range	0 - 1
- measurement error	± 0.003
MOR measurement using SF-01 PELENG:
- measurement range	15 - 10000 m
- measurement error	± 20 m (from 15 to 600 m) ± 5% (more than 600 to 1500 m) ± 15% (more than 1500 to 10000 m)
MOR measurement using SL-03 PELENG nephelometer:
- measurement range	5 - 50000 m
- measurement error	± 10% (from 5 to 10000 m) ± 20% (more than 10000 to 50000 m)
Background luminance measurement using SL-02 PELENG:
- measurement range	1 - 50000 cd/m²
- measurement error	± 15 cd/m² (from 1 up to 40 cd/m²) ± 10% (more than 40 to 20000 cd/m²) ± 20% (more than 20000 to 50000 cd/m²)
Operation mode	automatic message or upon request
Message interval	5 s
Determination of weather phenomena	9 types
Power supply voltage:
- AC mains	230 V 50 Hz
Power consumption	≤ 200 W
Interfaces	RS-485-2W, V.23
Communication protocol	ASCII
Operating conditions:
- air temperature	-60°C to +65°C
- relative humidity	0 - 100%
- atmospheric pressure	60 - 110 kPa
Protection	IP 66
Dimensions (L×W×H):
- emitter mounted on pole with cover	1020×420×2620 mm
- receiver mounted on pole with cover	1020×420×2620 mm
- nephelometer	770×455×620 mm
Weight:
- emitter mounted on pole with cover	131 kg
- receiver mounted on pole with cover	131 kg
- nephelometer	5 kg
- electronic unit	15 kg
Life time	10 years
CERTIFICATION
№ 18211 issued by the State Committee for Standardization of the Republic of Belarus

SOFTWARE
Peleng Meteo
