S-01 Meteorological Measuring and Information System (portable version)
PURPOSE
- Continuous collection and processing of meteorological information coming from sensors at the location of deployment of the mobile system
- Formation of regime summaries
- Formation of regular and "storm" telegrams
- Sending telegrams to meteorological information collection centers
- Maintaining an archive of meteorological information
ADVANTAGES
- MOBILITY. The system is delivered to the place required by the customer using light freight vehicles (LCV) due to its shipment in the shipping cases
- DEPLOYMENT SPEED IS 30 MINUTES
- STATION CONSTRUCTION IS FLEXIBLE. The customer can choose the scope of delivery, types of equipment and options
- RESOURCE OPTIMIZATION. The station staff is 2 persons
- HIGH AUTONOMY. The power supply can be performed through from the vehicle mains and from storage batteries, a diesel generator or solar batteries
- LIGHTNESS AND CORROSION RESISTANCE. Main structural components of the telescopic mast are made of composite materials and aluminum
- COMPREHENSIVE SOLUTION. From initial consultation and development to the delivery, mounting, personal training and maintenance
EQUIPMENT CONFIGURATION
- Ultrasonic anemorumbometer
- Nephelometer with weather sensor
- Ceilometer
- Air temperature and humidity sensor
- Precipitation gauge
- Soil temperature sensor
- Barometer
- Receiving and transmitting unit
- Control unit (PC)
- Battery unit
- Telescopic mast with pneumatic drive
- Compass
- Shipping cases
- Cables set
- Installation kit
- Set of spare parts
OPTIONAL EQUIPMENT
- Communication terminal 3G/LTE/SAT
- Solar battery set
- Lightning rod

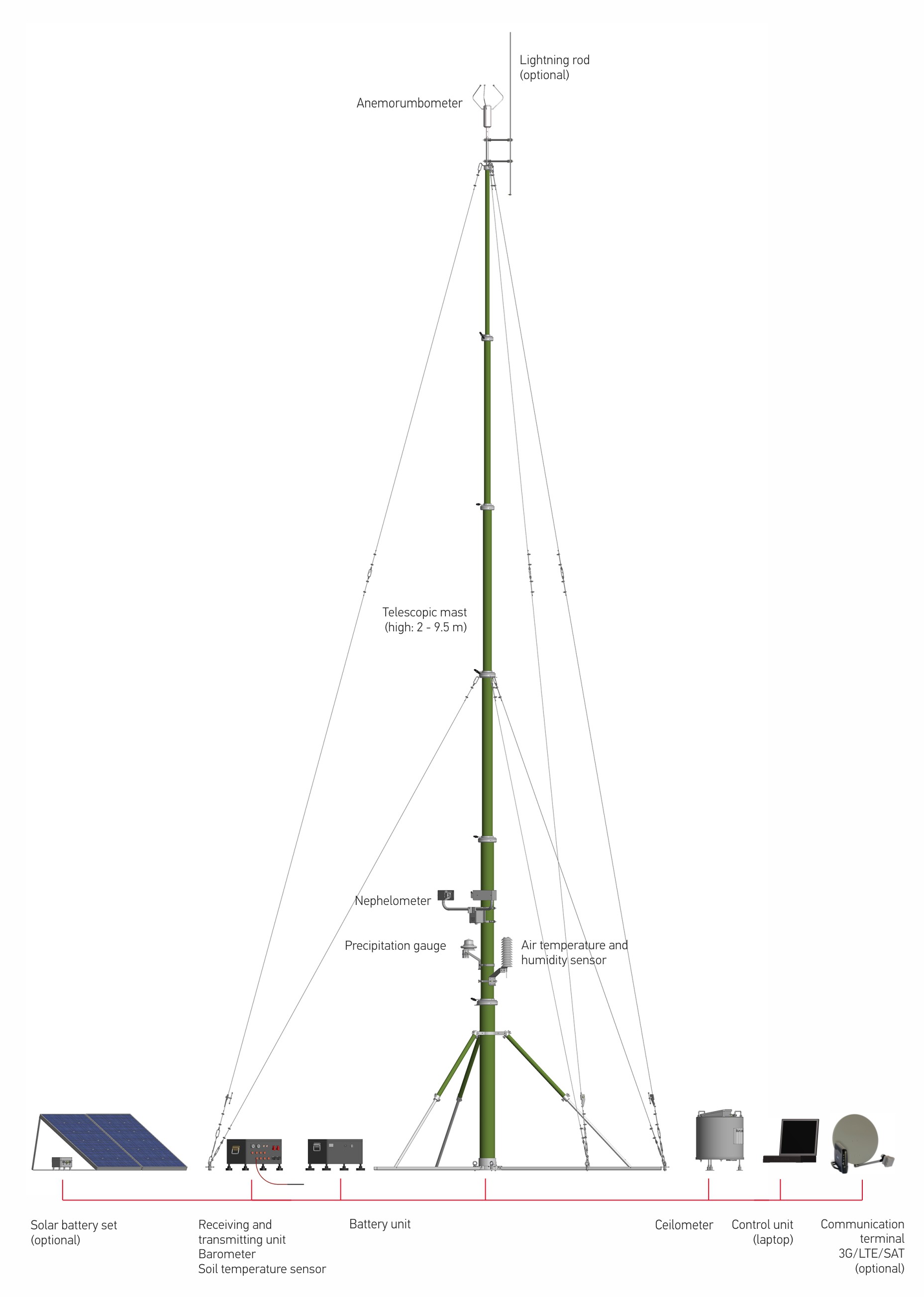

FUNCTIONAL DIAGRAM
MEASURED PARAMETERS
Wind speed: - measurement range - measurement accuracy |
0.3 - 50 m/s ± 0.3 m/s (0.3 - 10 m/s) |
Wind direction: - measurement range - measurement accuracy - response time |
0 - 360° ± 3° 3 s |
Air temperature: - measurement range - measurement accuracy |
-60°С to +60°С ± 0.6°С (-60°С to -50°С) ± 0.4°С (-50°С to +60°С) |
Air pressure: - measurement range - measurement accuracy |
300 - 1 100 gPa ± 0.5 gPa |
Relative humidity: - measurement range - measurement accuracy |
2 - 99% ± 4% (2 - 90%) ± 5% (90 - 99%) |
Meteorological optical range (MOR): - measurement range - measurement accuracy |
0 - 30 000 m ± 10% (0 - 10 000 m) ± 20 % (10 000 - 30 000 m) |
Cloud-base height: - measurement range - measurement accuracy |
5 - 8 000 m (up to three layers) ± 5 m (5-100 m) ± 10% (100 - 2 000 m) ± 5% (2 000 - 8 000 m) |
Precipitation intensity: - measurement range |
0 - 200 mm/h (defines 3 types of recipitation: rain, snow, hail) |
Soil temperature - measurement range - measurement accuracy |
-55°С to +65°С ± (0.2+0.002·|t|) |
SPECIFICATIONS
System power supply: - by DC mains of the vehicle - by AC mains |
9 - 36 V 230 ± 23 V (50Hz) |
Off-line operation time |
not less 8 hours |
Data transmission interface |
RS-485/Ethernet, |
Protection |
IP 65 |
Operating temperature: - operating from batteries - operating from mains sources |
-25°С to +50°С -55°С to +60°С |
Telescopic mast height |
2 - 9.5 m |
Telescopic mast weight |
45 kg |
Battery unit weight |
30 kg |
Receiving & transmitting unit weight |
15 kg |
Ceilometer weight |
26 kg |
System overall mass (gross/net) |
232 / 171 kg |
System overall dimensions in shipping cases (8 units) |
1.95 m3 |
TESTS
- For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2016
- For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
- For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation (including laser emission sources), marking to GOST IEC 61010-1-2014
CERTIFICATES
- Pattern Approval Certificate of Measuring Instruments No. 16226 dated 31.03.2023 issued by the State Committee for Standardization of the Republic of Belarus
Certificate of ME Type Approval № 80612-20 dated18.03.2021 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
