S-01 Meteorological Measuring and Information System (agrometeorological version)
PURPOSE
- Continuous measurement of meteorological parameters and crop state observation
- Transfer of measured and analytical information to a remote server via mobile communication
- Meteoinformation filing, compilation of «Cropping history»
ADVANTAGES
- COST REDUCTION. Due to up-to-date meteorological information the optimum quantity of fertilizers is applied just in time
- YIELD ENHANCEMENT. Continuous control of the plants' state prevents their blight and increases the quality of the yield
- FLEXIBILITY OF SYSTEM BUILDING. The customer can choose the completeness of the delivery, types of equipment and options
- POSSIBILITY OF BUILDING AN AUTONOMOUS SYSTEM. The use of autonomous power sources and the ability to work in automatic mode allows the station without operator participation
- COMPLETE SOLUTION. From initial consultation and development to delivery, installation, staff training and technical support
MAIN DESIGN FEATURES
- The traverse form and special adapters for sensors allow install on it a large number of equipment
- Concealed cable route is provided
- Mast consists from two sections that allow fast and easy system installation
EQUIPMENT CONFIGURATION
- Ultrasonic anemorumbometer
- Air temperature, relative humidity and atmospheric pressure sensor
- Photosynthetic active radiation (PAR)
- Precipitation gauge
- Soil temperature and moisture sensor
- Soil acidity sensor
- Leaf moisture sensor
- Electronic unit
- External battery in sealed box
- Solar panel
- Communication terminal 3G/LTE/SAT
- Demountable mast with traverse
- Cable set
- Installation kit
- Set of spare parts

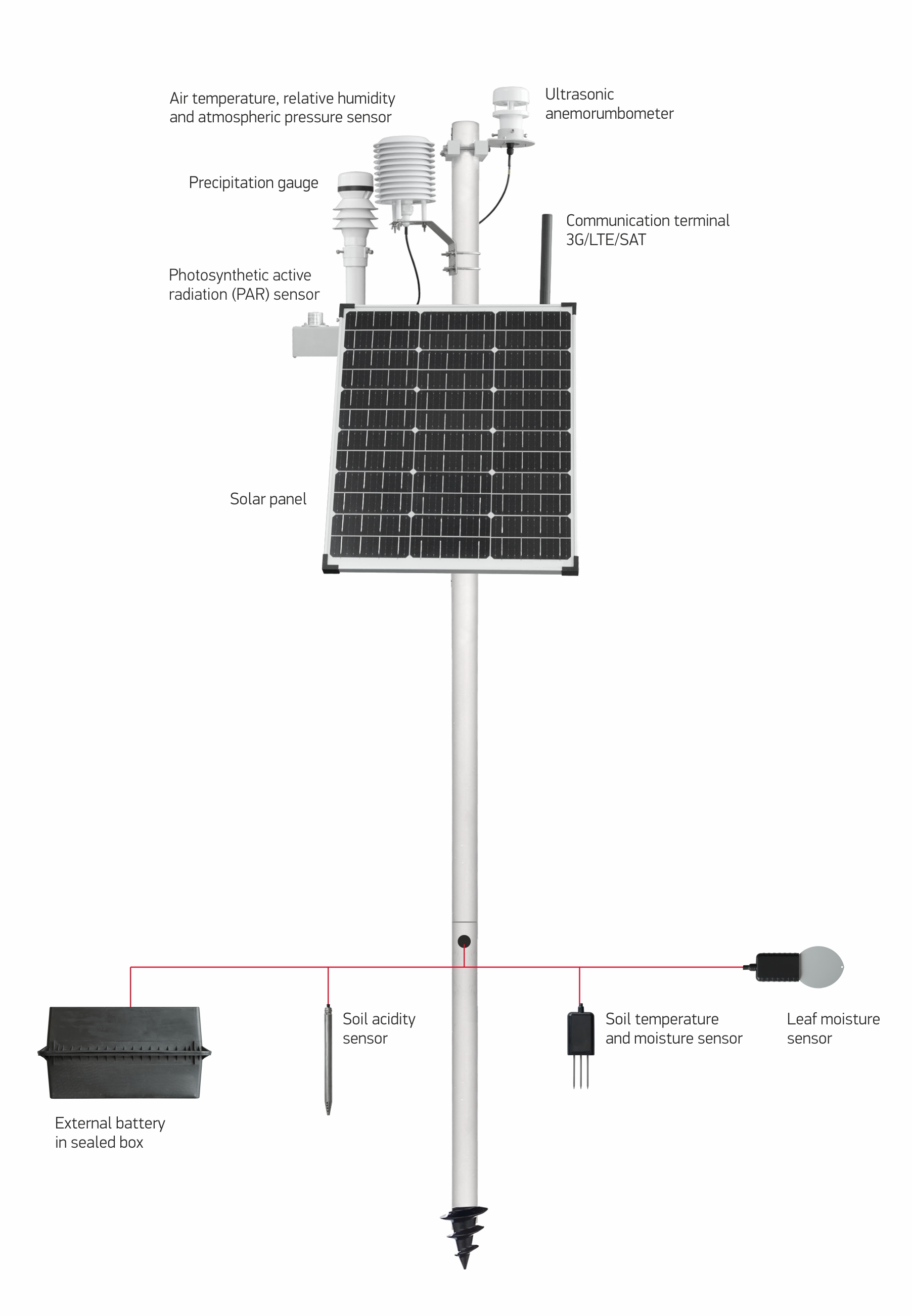

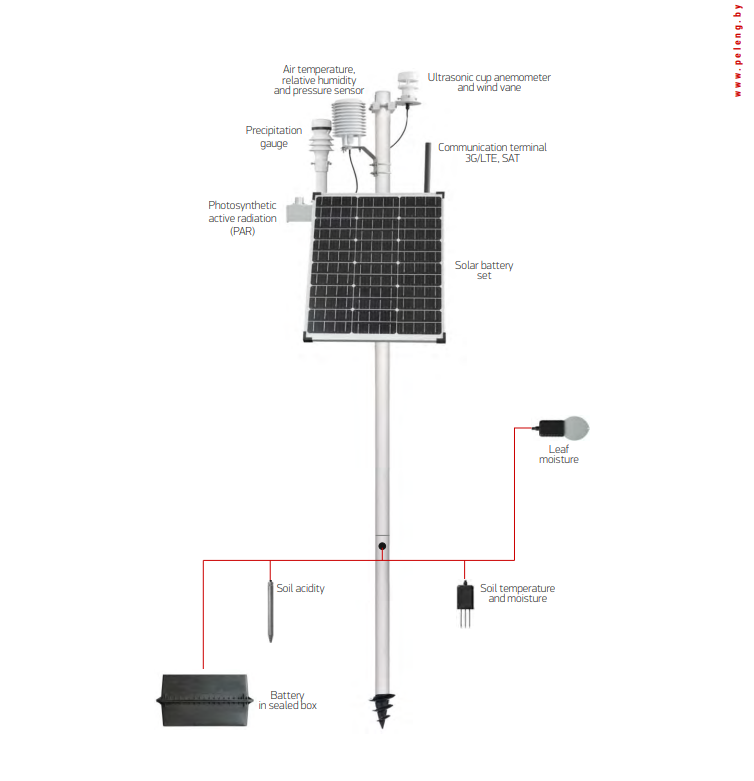

FUNCTIONAL DIAGRAM
MEASURED PARAMETERS
|
Wind speed: - measurement range - measurement accuracy |
0 - 40 m/s ± 0.3% |
|
Wind direction: - measurement range - measurement accuracy - response time |
0 - 360° ± 3° 3 s |
|
Air temperature: - measurement range - measurement accuracy |
-40°С m/s +60°С ± 0.5°С |
|
Air pressure: - measurement range - measurement accuracy |
100 - 1 100 gPa ± 1 gPa |
|
Relative humidity: - measurement range - measurement accuracy |
0 - 100% ± 3% |
|
Precipitation intensity: - measurement range |
0 - 200 mm/h (defines 3 types of precipitation: rain, snow, hail) |
|
Soil temperature - measurement range |
-30°С to +70°С |
|
Soil moisture: - measurement range |
0-100% |
|
Soil acidity: - measurement range |
0 – 14 pH |
|
Leaf moisture - measurement range - measurement accuracy |
0-100% ± 3% (0 - 50%) ± 5% (50 - 100%) |
|
Total solar radiation: - measurement range |
0 - 1.4 kW/m² |
|
Photosynthetic active radiation (PAR) - measurement range |
0 - 2 500 μMol/m2·s |
SPECIFICATIONS
|
Mast height: - overall height - high of section screwed into the ground |
2.2 m 0.8 m |
|
System power supply |
12 V |
|
Data transmission interface |
RS-485/Ethernet, 3G/LTE/SAT |
|
Protection |
IP 65 |
|
Average lifetime |
10 years |
|
Operation environment: - ambient temperature - relative air humidity - atmospheric pressure - wind speed |
-60°С to +65°С 0 -100% 600 -1100 gPa ≤ 55 m/s |
TESTS
- For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2016
- For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
- For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation (including laser emission sources), marking to GOST IEC 61010-1-2014
CERTIFICATES
- Pattern Approval Certificate of Measuring Instruments No. 16226 dated 31.03.2023 issued by the State Committee for Standardization of the Republic of Belarus
- Certificate of ME Type Approval № 80612-20 dated18.03.2021 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
