AMIS-PELENG SF-09 Automated Weather Observing System (portable version)

PURPOSE

  • Support of aircrafts takeoffs and landings from unequipped sites or temporary aerodromes
  • Continuous collection and processing of meteorological information coming from sensors at the location of deployment of the mobile system
  • Formation of regular and "storm" telegrams
  • Sending telegrams to meteorological information collection centers via dedicated communication channels
  • Maintaining an archive of meteorological information



ADVANTAGES

  • MOBILITY. The system is delivered to the place required by the customer using light freight vehicles (LCV) due to its shipment in the shipping cases
  • DEPLOYMENT SPEED IS 30 MINUTES
  • STATION CONSTRUCTION IS FLEXIBLE. The customer can choose the scope of delivery, types of equipment and options
  • RESOURCE OPTIMIZATION. The station staff is 2 persons
  • HIGH AUTONOMY. The power supply can be performed through from the vehicle mains and from storage batteries, a diesel generator or solar batteries
  • LIGHTNESS AND CORROSION RESISTANCE. Main structural components of the telescopic mast are made of composite materials and aluminum
  • COMPREHENSIVE SOLUTION. From initial consultation and development to the delivery, mounting, personal training and maintenance



EQUIPMENT CONFIGURATION *

  • Ultrasonic anemorumbometer
  • PELENG SL-03 Nephelometer
  • SD-02 2006 Ceilometer
  • Air temperature and relative humidity sensor
  • Receiving & transmitting unit
  • Battery unit
  • MM-1 Meteorological tower with the lightning rod and winch
  • Obstruction light
  • Operator kit (PC)
  • Software
  • Accessory kit
  • Installation kit
  • Cable set
  • Set of spare parts
  • Shipping cases
  • Solar battery set (optional)
  • Communication terminal 3G/LTE/SAT (optional)
  • Lightning rod (optional)

*  Each station is constructed according to the modular concept and can be individually configured based on the Сustomer's requirements

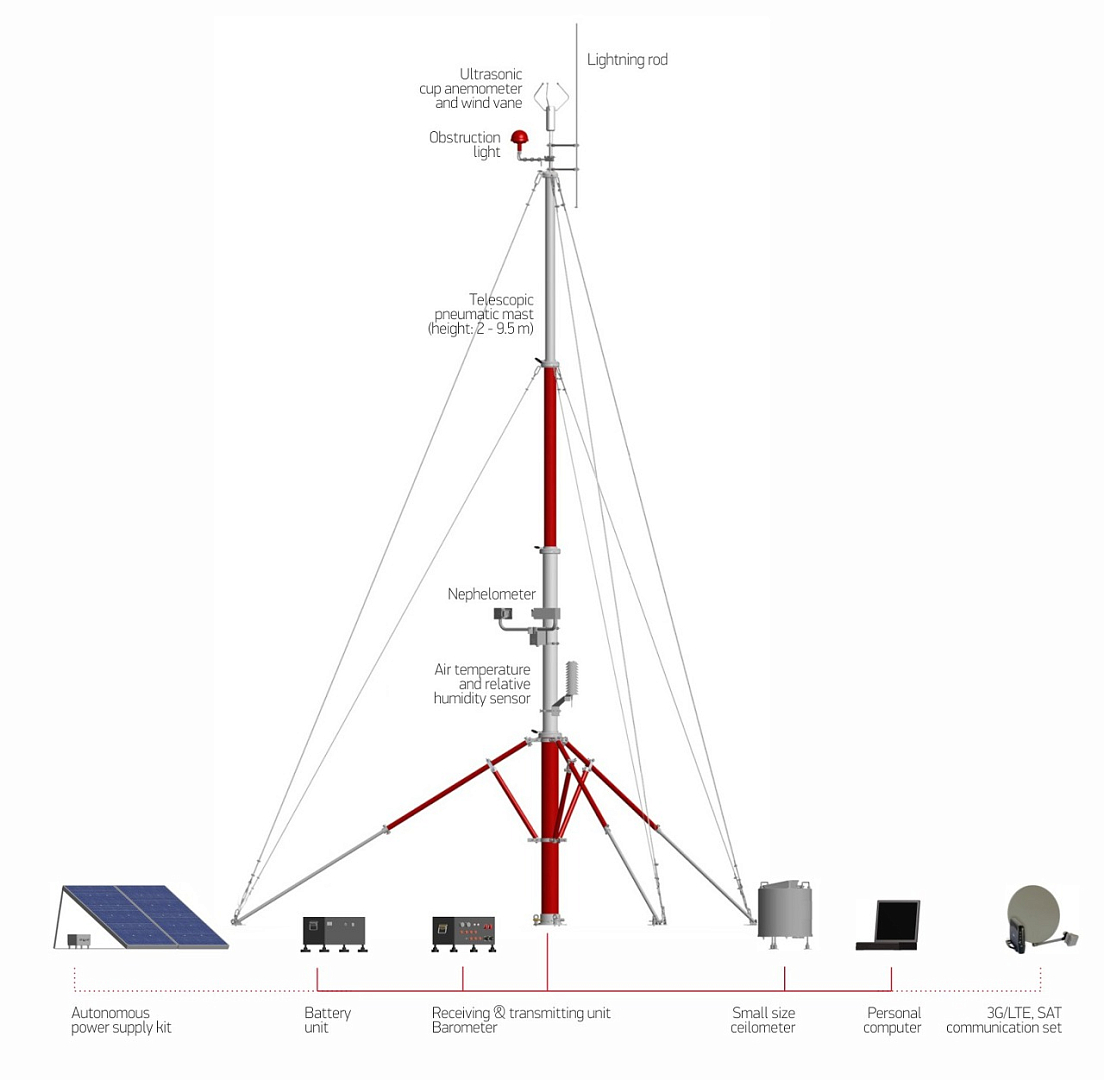

FUNCTIONAL DIAGRAM



MEASURED PARAMETERS*

Wind speed:

- measurement range

- measurement accuracy



0.3 - 65 m/s

± 0,3 m/s (0.3 - 10 m/s)
± 3% (10 - 55 m/s)

Wind direction:

- measurement range

- measurement accuracy

- response time



0 - 360°

± 3°

< 1 s

Air temperature:

- measurement range

- measurement accuracy



-60°С to +60°С

± 0.6°С (-60°С to -50°С)

± 0.4°С (-50°С to +60°С)

Air pressure:

- measurement range

- measurement accuracy



300 - 1100 gPa

± 0.5 gPa

Relative humidity:

- measurement range

- measurement accuracy



2 - 99%

± 4% (2 - 90%)

± 5% (90 - 99%)

Meteorological optical range (MOR):

- measurement range

- measurement accuracy



5 - 50 000 m

± 10% (5 - 10 000 m)

± 20 % (10 000 - 50 000 m)

Cloud-base height:

- measurement range

- measurement accuracy



5 - 8 000 m (up to three layers)

± 5 m (5-100 m)

± 10% (100 - 2 000 m)

± 5% (2 000 - 8 000 m)

* System specifications, including sensors, comply with IAC and ICAO requirements



SPECIFICATIONS

System power supply:

- by DC mains of the vehicle

- by AC mains



9 - 36 V

230 ± 23 V (50Hz)

Off-line operation time

not less 8 hours

Data transmission interface

RS-485/Ethernet,
3G/LTE, SAT (optional)

Protection

IP 65

Operating temperature:

- operating from batteries

- operating from mains sources



-25°С to +50°С

-55°С to +60°С

Telescopic mast height

2 - 9.5 m

Telescopic mast weight

50 kg

Battery unit weight

30 kg

Receiving & transmitting unit weight

15 kg

Ceilometer weight

26 kg

System overall mass (gross/net)

237 / 176 kg

System overall dimensions in shipping cases (8 units)

1.95 m3



TESTS

  • For resistance to radio-frequency electromagnetic field according to STB EN 55022-2012, STB IEC 61000-4-6-2011, STB IEC 61000-4-3-2009
  • For resistance to radio interference according to STB IEC 61000-4-2-2011, STB IEC 61000-4-4-2016, GOST IEC 61000-4-5-2017, STB IEC 61000-4-11-2006
  • For heat resistance, protection against electrical current damages, from mechanical hazards, from mechanical shock and shaking, protection against radiation, including laser emission sources)
  • For compliance with TC BY 100230519.177-2005



CERTIFICATES

  • № 15149 issued by the State Committee for Standardization of the Republic of Belarus
  • № 86211-22 issued by Federal Agency on Technical Regulation and Metrology (Russian Federation)
  • № 384 issued by Interstate Aviation Committee (IAC) Airport and Equipment Certification Committee
  • № 2720 Section of Federal Information Fund for Uniformity of Measurements in the Sphere of National Defense and Security
