AMIS-PELENG SF-09 Automated Weather Observing System for Helipad
|
PURPOSE
|
|
|
|
|
CAPABILITIES
|
|
|
|
|
EQUIPMENT CONFIGURATION
|
|
|
Equipment
Each station is constructed according to the modular concept and can be individually configured based on the Сustomer's requirements
|
|
|

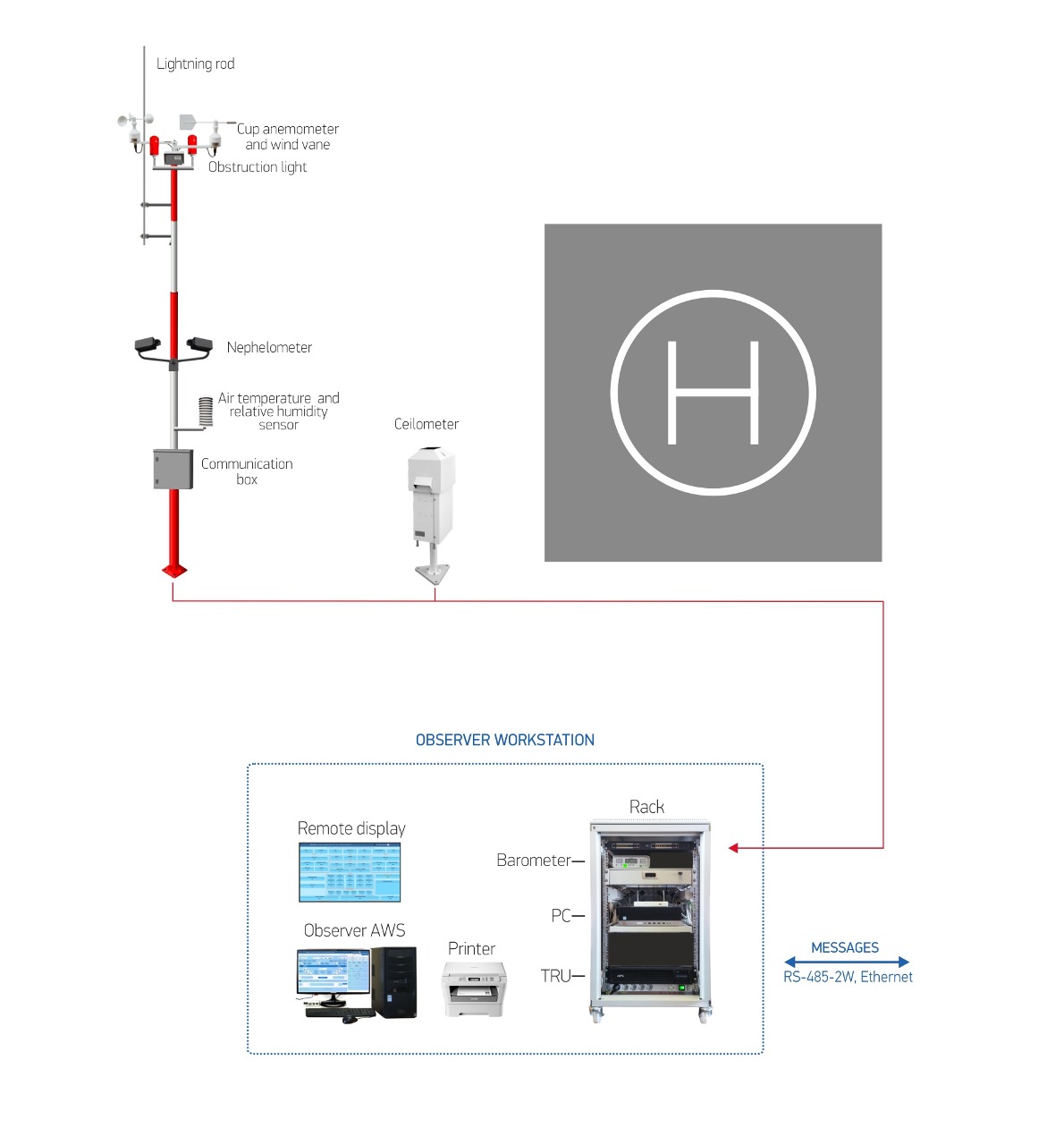

FUNCTIONAL DIAGRAM
|
|
 |
|
|
MEASURED PARAMETERS*
|
|
|
Wind speed:
|
|
| - measurement range | 0.4 - 75 m/s |
| - measurement accuracy |
± 0.3 m/s (0.4 - 10 m/s)
± 3% (10 - 75 m/s) |
|
Wind direction:
|
|
| - measurement range | 0 - 360° |
| - measurement accuracy | ± 3° |
| - response time | 3 s |
|
Air temperature:
|
|
| - measurement range | -60°С to +60°С |
| - measurement accuracy |
± 0.6°С (-60°С to -50°С)
± 0.4°С (-50°С to +60°С) |
|
Air pressure:
|
|
| - measurement range | 600 - 1100 gPa |
| - measurement accuracy | ± 0.3 gPa |
|
Relative humidity:
|
|
| - measurement range | 2 - 99% |
| - measurement accuracy |
± 4% (2 - 90%)
± 5% (90 - 99%) |
|
Meteorological optical range (MOR):
|
|
| - measurement range | 5 - 50 000 m |
| - measurement accuracy |
± 10% (5 - 10 000 m)
± 20 % (10 000 - 50 000 m) |
|
Cloud-base height:
|
|
| - measurement range | 5 - 8 000 m (up to three layers) |
| - measurement accuracy |
± 5 m (5-100 m)
± 10% (100 - 2 000 m) ± 5% (2 000 - 8 000 m) |
| * System specifications, including sensors, comply with IAC and ICAO requirements | |
|
SPECIFICATIONS
|
|
| Power supply voltage | 230 ± 23 V (50Hz) |
| Power consumption | ≤ 2,5 kW |
| Data transmission interface | RS-485/Ethernet, V.23, 3G/LTE/SAT |
| Protection | IP 65 |
| Average lifetime | 10 years |
|
Outdoor device's operating conditions:
|
|
| - air temperature | -60°С to +65°С |
| - relative air humidity | 0 - 100% |
| - atmospheric pressure | 600 -1100 gPa |
| - wind speed | ≤ 55 m/s |
|
Indoor device's operating conditions:
|
|
| - air temperature | +5°С to +40°С |
| - relative air humidity | ≤ 80% |
|
