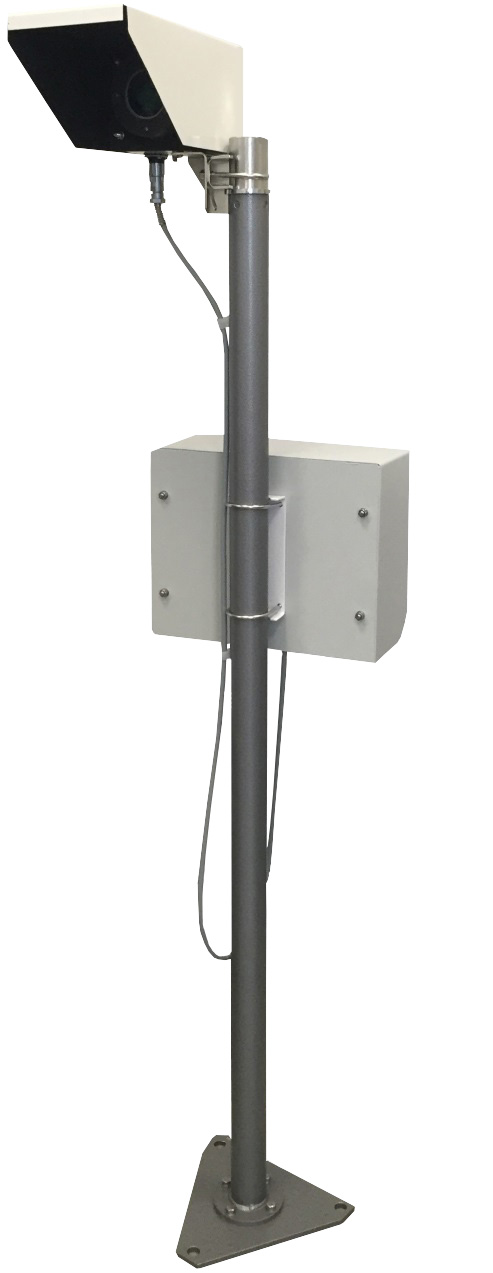

PELENG SL-02 Background Luminance Sensor
PELENG SL-02 Background Luminance Sensor
PURPOSE
  • Background luminance measurement. Operating principle: conversion of the radiant flux of the measured background into an electrical signal
APPLICATION
  • Meteorology
  • Airfields and helipads
ADVANTAGES
  • Possibility to simulate sensor messages from other manufacturers with console customization
  • Heated protective glass
EQUIPMENT CONFIGURATION
  • Optical unit with cover
  • Set of spare parts, tools and accessories
OPTIONAL EQUIPMENT
  • Translator
  • Power supply unit BP-220-24
  • Column assembly
ADDITIONAL IMAGES
product designation structure

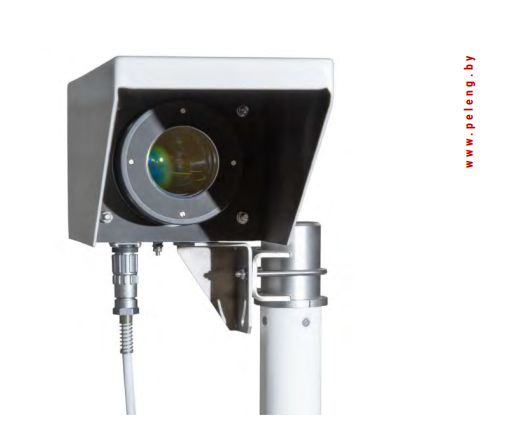

PELENG SL-02 Background Luminance Sensor
MAIN SPECIFICATIONS
Measurement range 1 - 50000 cd/m²
Measurement error ± 15 cd/m² (from 1 to 40 cd/m²)
± 10% (more than 40 to 20000 cd/m²)
± 20% (more than 20000 to 50000 cd/m²)
Operation mode automatic
Message interval 15 s
Power supply voltage:
- DC mains 24 V
Power consumption including heating ≤ 30 W
Output interface RS-485-2W, V.23
Communication protocol ASCII
Operating conditions:
- air temperature -60°C to +65°C
- relative air humidity 0 - 100%
- atmospheric pressure 60 - 110 kPa
Protection IP 66
Dimensions (L×W×H):
- optical unit with cover 315×145×130 mm
- column assembly 225×225×1500 mm
Weight:
- optical unit with cover 4 kg
- column assembly 10 kg
Life time 10 years
CERTIFICATION
№ 17488 issued by the State Committee for Standardization of the Republic of Belarus
№ 673 issued by Interstate Aviation Committee. Airport and Equipment Certification Committee
SOFTWARE
Peleng Meteo
