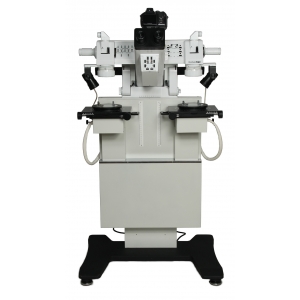

PELENG MC-4 Comparison Microscope
PURPOSE
Forensic pathology and criminalistic studies.
SOFTWARE
- provides acquisition, processing, inspection, and storage of video images;
- illuminator and stage movement can be performed from microscope panel and from connected PC workstation.
OPERATION MODES
- split (side-by-side) and superimosed image comparison for objects on left and right microscope stages;
- document inspection using inclined incident light, transmitted light, IR light, and incident UV light;
- direct object studying through binocular head, or viewing the image of the object on PC workstation monitor
- using integrated colour TV camera;
- image capture using digital photo camera;
- smooth travel of dividing line along whole FOV area in split-image mode;
- synchronized magnification change and illumination control in both channels;
- linear dimensions measurement for elements of a studied object;
- independent control of illumination source and intensity for each channel.
Specifications
Magnification for direct-view optics, power, with max error of 5% | 5; 10; 20; 40; 80 |
Field of view, mm, min | 40; 20; 10; 6; 2,5 |
Integrated USB 2.0 colour TV camera, MP | 5,0 |
Digital photo camera, MP | 12,0 |
Focussing range, mm, min | 15 |
Objective to object distance, mm | 115 ± 10 |
Stage movement: - in XY plane from central position, mm - Z axis rotation, º - along Z axis, mm - motorized shift of both stages along Y axis (left-right from central position), mm |
± 20 360 200 ± 10 50 ± 5 |
Eyepiece diopter adjustment range, dpt | +5...-5 |
Pupil distance adjustment range, mm | 56+1,0...75-1,0 |
Sleeves and bullets diameter, mm | 3 ÷ 25 |
Sleeves and bullets length, mm | 4 ÷ 70 |
Distance and element measurement range, mm | 0 ÷ 60 |
Scale division value, mm | 0,05 |
Linear dimension measurement error, mm | 0,05 |
Power supply voltage (50 Hz), V | 230 ± 23 |
Power consumption, W, max | 650 |
Motorized stage movement speed, mm/s , max | 5 |
Eypiece height (from floor), mm | 1160 |
Overall dimensions, mm | 680×600×1210 |
Weight, кg | 130 |
Functions

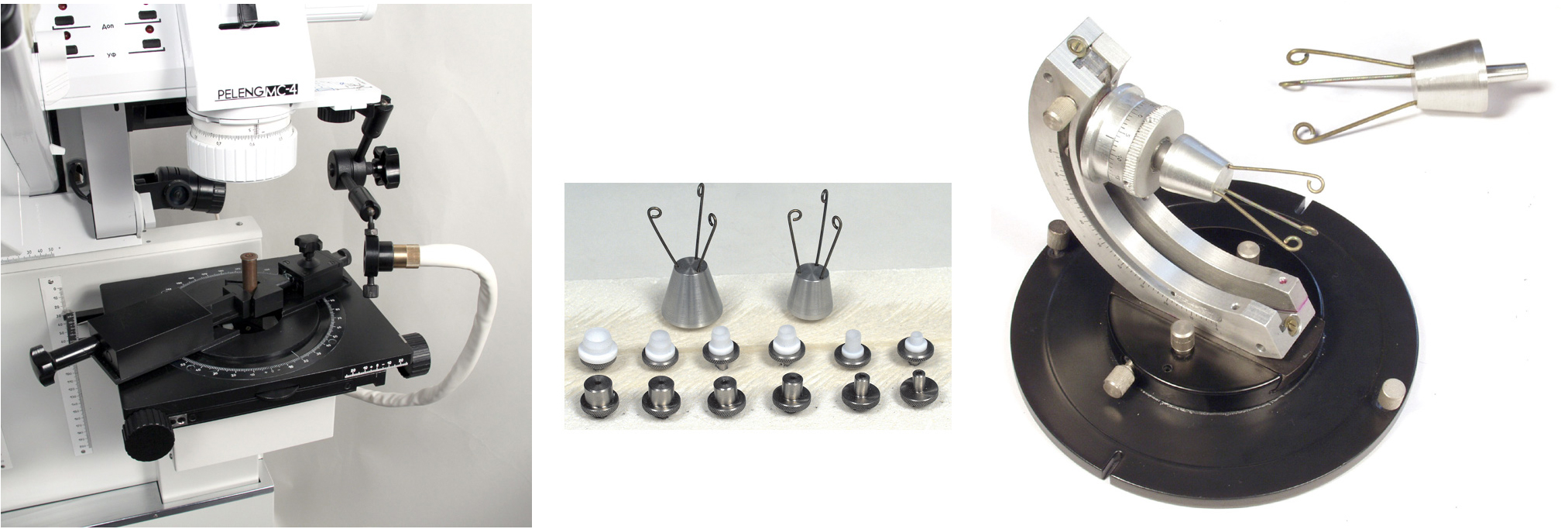

1. Studying of bullets, sleeves etc. in superiposed and split-image view modes: |
2. Split-image and superimosed image comparison for objects on left and right microscope stages: |
3. Studying of documents:: |
4. Study of biological objects: |
5. Document inspection using inclined incident light, transmitted light, IR light, and incident UV light: |
