PELENG SF-07 Verification Instruments Set
CAPABILITIES
Metrological verification of PELENG SF-03 cup anemometer and wind vane (ТУ РБ 100230519.165-2000).

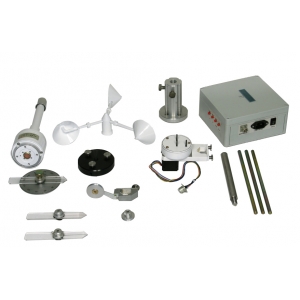

COMPLETE SET
- test-bench for pulse frequency check;
- fixture for wind vane rotation angle check;
- fixture for friction torque check;
- accessories set;
- spare parts set;
- two cases.
CERTIFICATE
№ 9835 issued by the State Committee for Standardization of the Republic of Belarus
Specifications
| Pulse frequency range, Hz | 5 ÷ 600 |
| Pulse frequency permissible error in ranges: - 5 ÷ 50 Hz - 50 ÷ 600 Hz |
± 0,7 Гц ± 1,5 % |
| Input signal to wind speed translation range, m/s | 0,76 ÷ 55,32 |
| Permissible error of input signal to wind speed translation in ranges: - 0,76 ÷ 4,89 m/s - 4,89 ÷ 55,32 m/s |
± 0,07 m/s ± 1,5 % |
| Weights for friction torque check, g, max: - for cup anemometer - for wind vane |
2,8-0,2 4,5-0,3 |
| Range of wind vane rotation angle check, º | 0 ÷ 360 |
| Permissible error of wind vane rotation angle check, º | ± 1 |
| Power consumption, max, W | 20 |
| Power supply voltage (50 Hz), V | 230 ± 23 |
| Overall dimensions, mm, max: test-bench for frequency check: - electronic unit - cup anemometer drive fixture for friction torque check fixture for wind vane rotation angle check |
205 × 200 × 95 105 × 96 × 85 125 × 50 × 60 145 × 100 × 60 |
| Weight, kg, max: test-bench for frequency check: - electronic unit - cup anemometer drive fixture for friction torque check fixture for wind vane rotation angle check |
2,0 0,8 0,1 0,14 |
